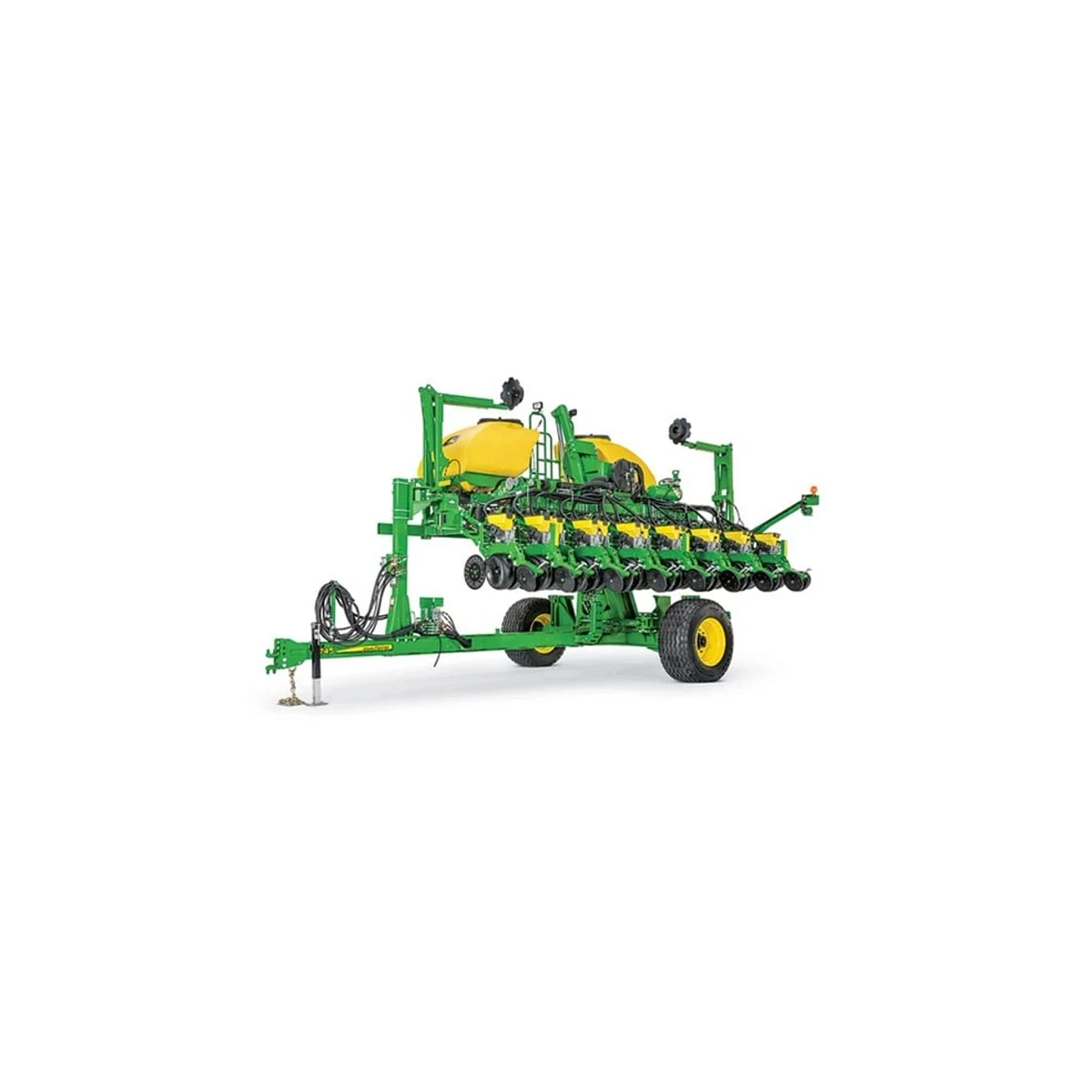

Studio image of 1745 planter.
No items found.
new
John Deere
1745
Drawn Planters

John Deere 1745 - Eight Row - 30 in. Spacing

Starting at

Key Features

  • Compact Design Ideal for Small Fields and Narrow-Road Transport
  • 3 Configurations With Row Spacings at 15 in. (38 cm.), 30 in. (76 cm.)
  • Pivot-Fold Transport From Cab in Only 40 Seconds
  • Compatible With Older Tractors With Lower Hydraulic Flow
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Rapid Folding Capability

The 1745 Planter minimizes non-productive planting time with its capability to fold from the tractor cab. Using a frame control box tied to one hydraulic circuit, folding and unfolding cycles can be completed in under a minute.

A planter folded for transport attached to a tractor hitch, featuring a large yellow tank mounted on a green frame, gauge wheels, and a row-unit section with black rubber closing wheels
Reduced Soil Compaction

Equipped with radial flotation tires, the 1745 Planter reduces ground pressure by increasing the tire's footprint with lower inflation. This feature ensures gentle handling of soil, minimizing compaction during planting operations.

Front view of a John Deere planter with dual yellow seed tanks and green frame, positioned against a plain white background
Narrow Transport Position

The 1745 Planter offers easy road navigation with its narrow transport position and foldable row units for stability, making it efficient for traveling through narrow roads and spaces.

Front right view of a 1745 Planter in Transport Mode on a country road
Question text goes here

Answer text goes here

Rows and Row Spacing
Number Of Rows

8

Row Spacing

30 in.

Row Spacing

76.2 cm

Frame
Frame Fold Configuration

Pivot fold

Frame Tube Size

5x7 in.

Frame Tube Size

12.7x17.8 cm

Fold-And-Go From Tractor

Yes

Frame Flexibility

Rigid

Hitch
Base

Clevis drawbar

Rear Hitch

No

Lift System
Type

Hydraulic frame lift

Number Of Cylinders

1

Tires
Base

VF445_50R22.5 implement (2 tires), 16x6.50-8 seed contact drive (1 tire), 16x6.50-8 fertilizer contact drive (1 tire)

Quantity

2

Row Units
Type

MaxEmerge™ 5

Opener

Tru-Vee double-disk

Depth Gauging

Two solid or spoked gauge wheels

Adjustment

Handle

Walking Wheels

Yes

Row Unit Seed Hoppers

Mini

Seed Hopper Capacity

1.6, 3 bu

Seed Hopper Capacity

56.4, 105.7 L

Seed Hopper Material

Plastic

Non-Adjustable (4 Springs) Down Force

No

Adjustable Heavy-Duty Down Force

Yes

Pneumatic Down Force

Yes

Plastic Rotary Opener Blades

No

Steel Straight Opener Blades

Yes

Heavy-Duty Opener Blades

Yes

Base Seed Tube Sensors

AccuCount™

Seed Meters
Base Seed Meter

MaxEmerge™ 5 vacuum

Finger Pickup

Yes

Radial Bean Meter

No

CCS Seed Capacity

50 bu

CCS Seed Capacity

1762 L

Drive System
Base

Ground drive

Number Of Drive Wheels

1

Drive Wheel Disconnect

When planter is raised

Markers
Type

Folding

Base Control

Connected to planter lift

Optional Control

Independent of planter lift

Base Marker Disk

Notched disk with depth gauging band: 40.6 cm, 16 in

Shear Bolt Protection

Yes

Less Marker Option

Yes

Closing System
Rubber Tire Closing System - Wheel

2

Rubber Tire Closing System - Position

Four slots

Rubber Tire Closing System - Adjustment

T handle

Rubber Tire Closing System - Down Force

Spring

Rubber Tire Closing System - Alignment

In-line or staggered

Cast Iron Closing System - Wheel

2

Cast Iron Closing System - Position

4 slots

Cast Iron Closing System - Adjustment

In-line or staggered

Herbicide and Insecticide
Insecticide Only Hopper

Yes

Liquid Insecticide System
System Available

No

Seed Monitor System
Base

SeedStar™ 2

Optional

ComputerTrak™ 350, SeedStar XP

Tillage Attachments
Unit-Mounted Coulter

Yes

Bubble Blade

Yes

0.63-in. Fluted Blade (25 Flutes)

Yes

0.7-in. Fluted Blade (13 Flutes)

Yes

Row Cleaner

Yes

Row Cleaner - Unit-Mounted Coulter

Yes

Fertilizer
Onboard/Towed/Tractor Tanks

Two-onboard / AFC KIT tractor tanks

Tank Capacity

300 gal.

Tank Capacity

1136 L

Fixed-Rate Application

Yes

Pump Type

Ground drive piston pump

Pump Rate

2.4-37.6 gpa

Pump Rate

22.4-352 L/ha

Frame-Mounted Fertilizer Opener

Yes

In Furrow Fertilizer Opener

Yes

Number Of Dry Fertilizer Hoppers

Two - Onboard

Dry Fertilizer Hopper Capacity

42.4 cu ft

Dry Fertilizer Hopper Capacity

1200 L

Dimensions
Transport Width (With Markers)

12.167 ft

Transport Width (With Markers)

3.71 m

Transport Width (Without Markers)

12.167 ft

Transport Width (Without Markers)

3.71 m

Transport Length

26.25 ft

Transport Length

8 m

Transport Height

12.583 ft

Transport Height

3.84 m

Transport Weight

Empty with 105.7 (3-bu) hoppers, no fertilizer system: 5,546 kg 12,227 lb; Empty with Central Commodity System: 6,016 kg 13,263 lb; Liquid fertilizer with frame mounted openers weight empty: 781 kg 1,722 lb; Liquid fertilizer with in-furrow weight empty: 425 kg 937 lb; Dry fertilizer with frame mounted openers weight empty: 1,000 kg 2,205 lb

Field Operation Height

10.667 ft

Field Operation Height

3.24 m

Field Operation Width

20.583 ft

Field Operation Width

6.27 m

Ag Management Solutions
Map-Based Seeding

No

Field Documentation

Yes

Parallel Tracking

Yes

Additional Information
Recommended Tractor Horsepower

Engine, no fertilizer system: 78 kW 105 hp; Engine with frame mounted fertilizer openers: 85.6 hp 115 hp

Recommended Tractor Hydraulics

See compatibility story

Warranty Length

Standard

Date Collected

2020-01-07
