John Deere
1725C
Mounted Planters

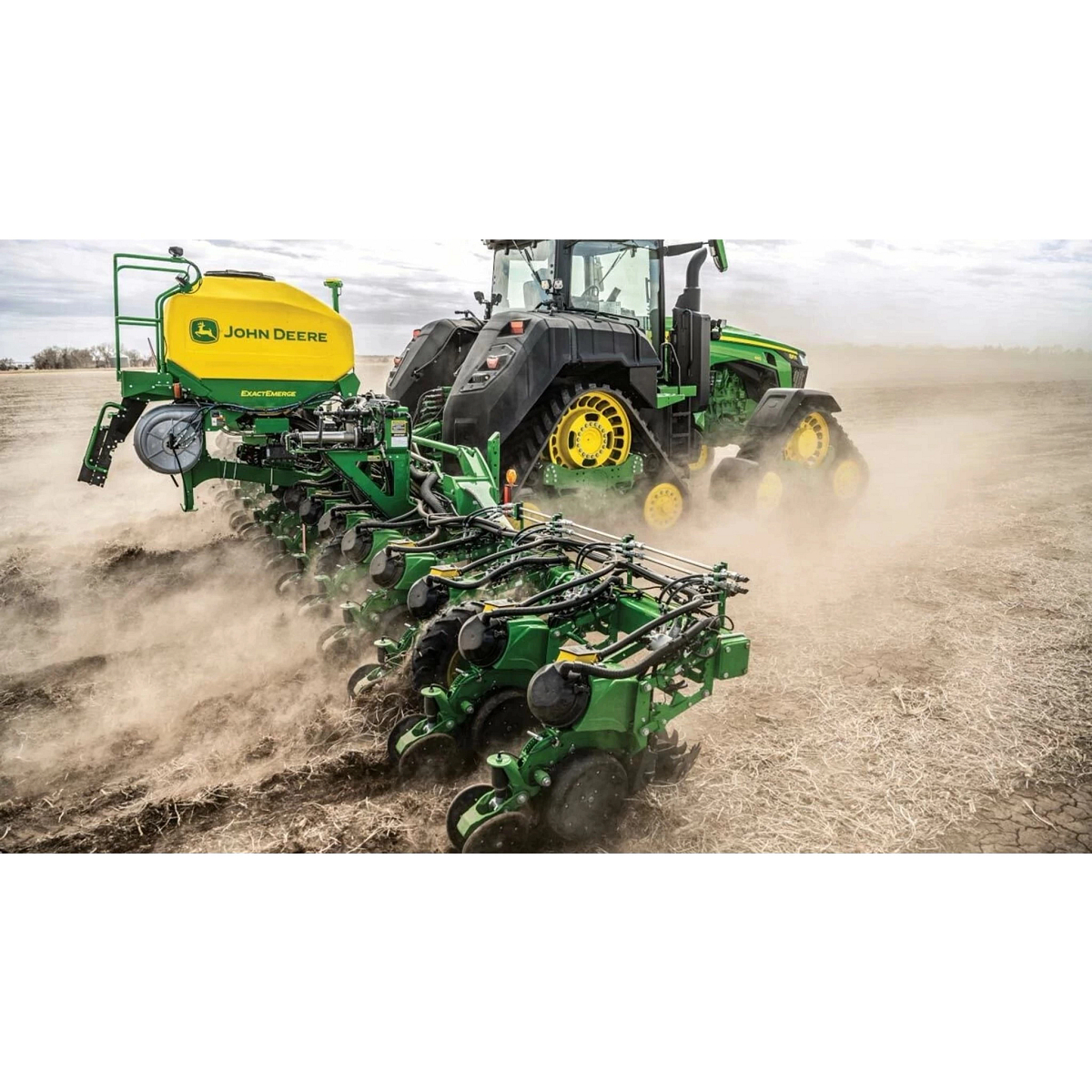

John Deere 1725C (Sixteen Row - 30 in.)

Starting at

Increase Productivity With ExactEmerge™ and BrushBelt™

Planting crops during the optimum window is crucial to avoid significant yield loss. ExactEmerge™ with the BrushBelt™ system ensures precise seed placement at higher speeds, maintaining accurate spacing even on uneven terrain, and features a self-cleaning mechanism to handle various soil conditions effectively.

Close-up of a black industrial brush belt assembly with rotating wheels, tension spring, and dense bristles.
Central Commodity System (CCS™) Seed Delivery

The 1725C Planter features a 55 bu (1938 L) CCS™ tank, enhanced with ergonomically friendly features such as a redesigned folding staircase and relocated blower. This configuration facilitates easier access and improved operating efficiency by increasing seed capacity and enabling bulk fill capability.

Central Commodity System (CCS™) Seed Delivery
Stack-Fold Integral Frame

The 1725C Planter's stack-folding frame allows for operation in both rigid-frame and flex-frame configurations, providing versatility in varied field conditions. The frame can flex up to 8 degrees up and down, enhancing maneuverability.

Stack-Fold Integral Frame
Question text goes here

Answer text goes here

Rows and Row Spacing
Number Of Rows

16

Row Spacing

30 in.

Row Spacing

76.2 cm

Frame
Frame Fold Configuration

Stack-folding

Frame Flexibility - Up

10 degree (angle)

Frame Flexibility - Down

7 degree (angle)

Lift System
Type

Integral or semi-integral

Tires
Base

12.5L-15SL 20 ply implement: 303 kPa 3.0 bar 44 psi; 7.60-15 8 ply implement: 359 kPa 3.6 bar 52 psi; 7.6-15 6 ply - traction: 276 kPa 2.8 bar 40 psi

Row Units
Type

ExactEmerge™ row units or MaxEmerge™ 5e row units

Opener

Tru-Vee double disk

Row Unit Seed Hoppers

Mini-hoppers

Row Unit Down Force

Active pneumatic downforce or individual row hydraulic downforce (IRHD)

Seed Meters
Base Seed Meter

Dual vacuum

CCS Seed Capacity

55 bu

CCS Seed Capacity

1938 L

Drive System
Base

Electric drive: EPTO only: 56 V

Seed Monitor System
Base

SeedStar™ 4HP electronic system

Dimensions
Transport Width (Without Markers)

20.54 ft

Transport Width (Without Markers)

6.26 m

Transport Height

21.92 ft

Transport Height

6.68 m

Transport Underframe Clearance

13 ft

Transport Underframe Clearance

4.22 m
