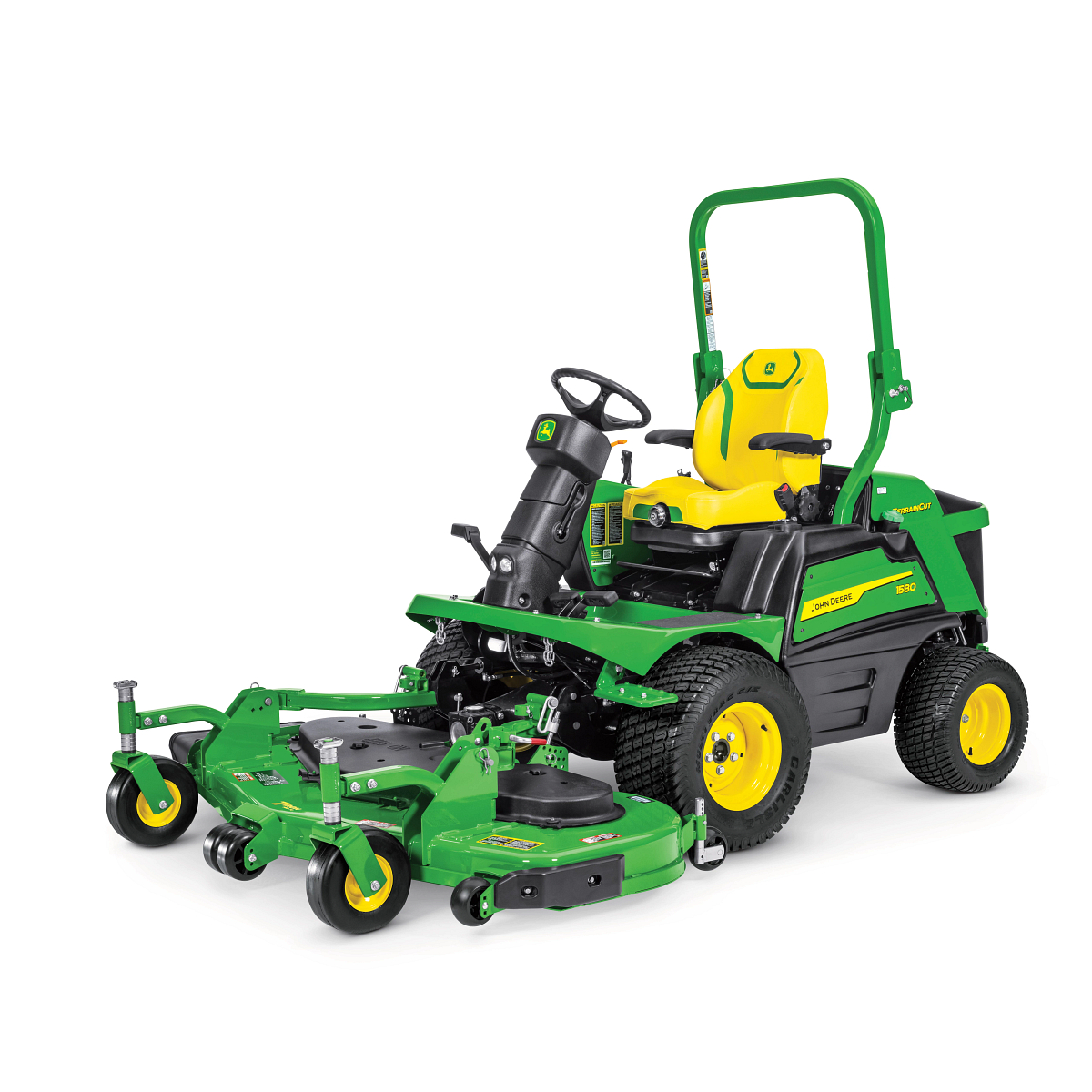

New 1580 TerrainCut™ Front Mower

Specifications

Compare >>> Select up to 2 models to compare specifications

John Deere1580 TerrainCut™ Front Mower

Add Model --Please Select-- 1550 TerrainCut Tier 4 (Model year 2023) 1570 TerrainCut Tier 4 (Model year 2023) 1575 Terrain Cut 4WD (Cab) Tier 4 (Model year 2023) 1585 Terrain Cut 4WD (Cab) Tier 4 (Model year 2023)

Add Model --Please Select-- 1550 TerrainCut Tier 4 (Model year 2023) 1570 TerrainCut Tier 4 (Model year 2023) 1575 Terrain Cut 4WD (Cab) Tier 4 (Model year 2023) 1585 Terrain Cut 4WD (Cab) Tier 4 (Model year 2023)

Engine Manufacturer/model	3TNV88C
Engine Power	Gross PS: 37.4 hp 27.5 kW
Fuel tank capacity	16 U.S. gal. 60.6 L
Mower deck Size	60 or 72 in. 152 or 183 cm
Blade tip speed	18,000 fpm 5,486 m/min
Transmission	Hydrostatic full time 4WD, on-demand
Speed range	0-15 mph 0-24 km/h
Drive wheels	26x12-12
Caster wheels	Flat free, 11x4-5
Warranty	24 months

Manufacturer/model	3TNV88C
Power	Gross PS, 37.4 hp 27.5 kW
Rated engine rpm	3,000 rpm
Cylinders	Three
Displacement	100.2 cu in. 1.64 L
Maximum torque	At 1,950 rpm: 80.4 lb-ft 109 Nm
Injection	Direct
Fuel type	Diesel (B20 compatible)
Fuel tank capacity	16 U.S. gal. 60.6 L
Cooling	Liquid
Cooling capacity	8 U.S. qt 7.6 L
Air cleaner	Dual element dry type
Air restriction indicator	Standard
Charging system	Automotive type
Alternator, amp	75 amp
Battery	12 V

Transmission	Hydrostatic full time 4WD, on-demand
Speed and direction control	Two-pedal foot
Cruise control	Optional
Hi/Lo range	Yes, dual speed transmission

Speed range
Hi forward	0-15 mph 0-24 km/h
Lo forward
Hi reverse	0-5 mph 0-8 km/h
Lo reverse
4-wheel drive
Differential lock
Final drives
PTO
PTO clutch
PTO drive output

Type	Open center
Pump capacity	6.3 U.S. gpm 23.8 L/min
Spool valve	Front lift, standard
Lift cylinders	Two

Type	Hydraulic cylinder
Turns lock-to-lock	2 maximum, 1.5 minimum

Type	Internal wet disk
Individual turn brakes	Standard
Master brake	Standard, locking

Warranty	24 months

Drive wheels	26x12-12
Steering	20x10-10

Type	Optional hydraulic

Wheelbase	49.2 in. 125 cm
Ground clearance	7 in. 17.8 cm
Length	Less mower deck: 86.7 in. 220.2 cm
Overall width	Narrow Width 26x12 tires: 55.4 in. 140.7 cm Wide Width 26x12 tires: 60.3 in. 153.2 cm
ROPS	Standard (folded)
ROPS certification	Two-post: OSHA 1928; Canadian Std.: CSA-352 Four-post: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009
Overall height with ROPS	83.7 in. 213 cm
Overall height with ROPS folded	59 in. 150 cm
Shipping weight	Net weight without mower or fuel: 2,120 lb 962 kg

Construction	One-piece stamped steel; 7-Iron PRO
Deck thickness	7 gauge 0.180 in. 4.6 mm
Size	60 or 72 in. 152 or 183 cm
Deck offset	Yes
Cutting height	1-6 in. 2.54-15.24 cm
Belt tensioning	Spring loaded
Blade tip speed	18,000 fpm 5,486 m/min
Caster wheels	Type Flat free Size 11x4-5
Front anti-Scalp rollers	Yes, gauge wheels
Rear anti-scalp rollers	Yes, gauge wheels
Shipping weight

Cutting width	62, 72 in. 157, 183 cm
Cutting height	1-6 in. 2.54-15.24 cm
Caster wheels	Type Flat free Size 11x4-5
Shipping weight

Date collected	1-Oct-22
