John Deere
DR18
DR Planters

John Deere DR18

Starting at

Plant with Confidence and Simplicity

When the field is fit, you need a planter that’s easy to run and delivers consistent results. With proven MaxEmerge™ 5 row units, vacuum metering, and practical features like pneumatic downforce and row-cleaner options, this lineup helps you place seed with confidence.

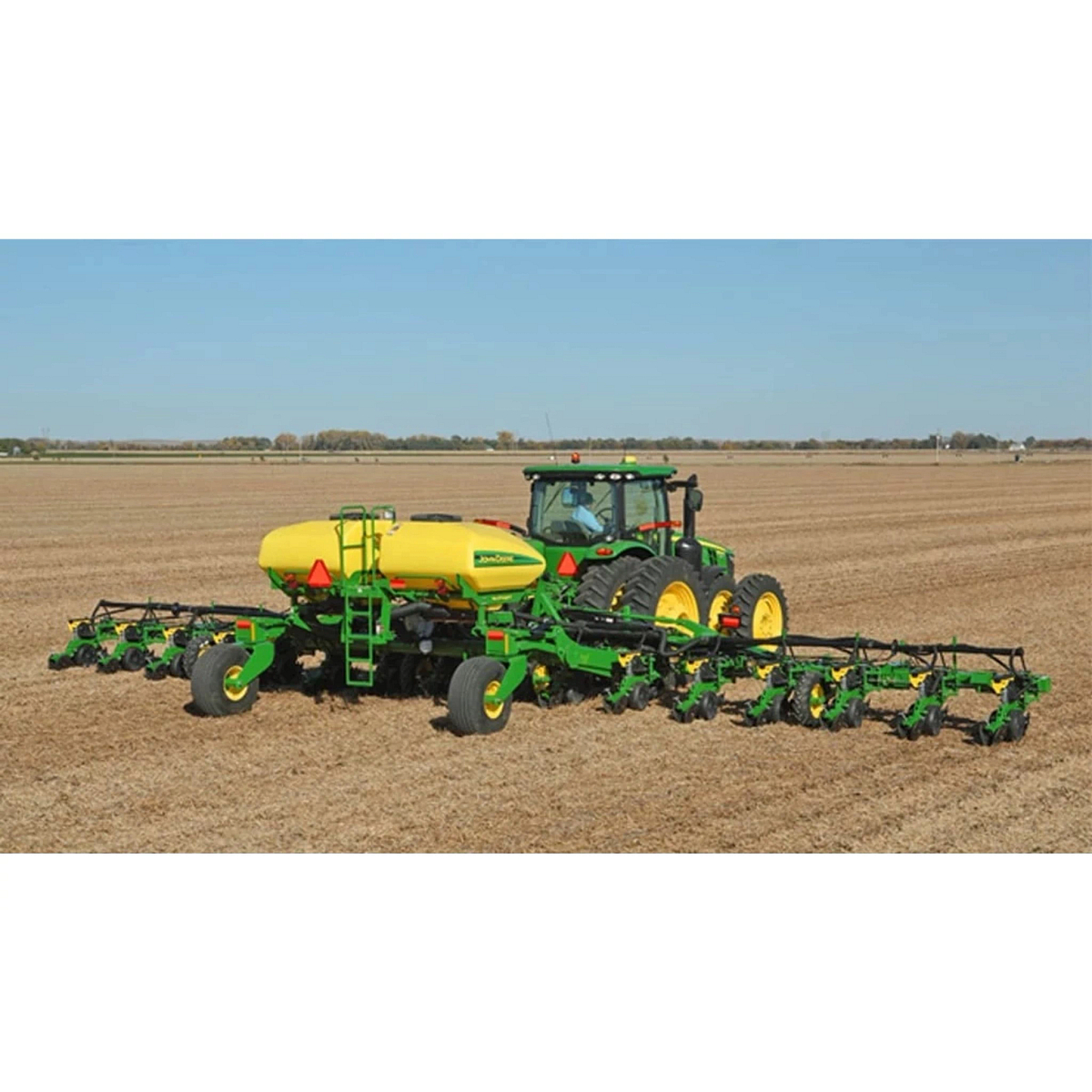

Tractor with large yellow wheels pulling a multi-row planter across a brown, freshly tilled field, with crop residue visible on the soil and a line of trees in the background under an overcast sky.
Right-Sized for Real Fields and Real Roads

Not every operation needs the biggest planter - just the right one. From rigid integral frames to stack-fold, pivot-fold, and flex wing-fold designs, these planters are built to fit tighter field shapes, smaller acreages, and narrow transport situations, so moving between fields stays manageable and planting stays efficient.

1725 integral stack-fold planter in a field.
Planters That Can Grow With You

John Deere has planter options for where you are today and where you want to be tomorrow, setting your operation up with a strong foundation with flexible configurations. Choose row counts, spacings, and hopper sizes that match your operation, with options like variable-rate drive, row cleaners, and downforce choices - so you invest where it matters today and prepare your planter for upgrades tomorrow.

Close-up of a green farm planter in a field, showing metal wheels, hoses, and planting discs cutting through low crops. A yellow seed hopper is partially visible, with soil and cut vegetation beneath a cloudy sky.
Question text goes here

Answer text goes here

Rows and Row Spacing
Number Of Rows

18

Row Spacing

20, 22, 30 in.

Row Spacing

50.8, 55.9, 76.2 cm

Frame
Frame Fold Configuration

Stack-folding or vertical folding

Frame Flexibility - Up

10 degree (angle)

Frame Flexibility - Down

7 degree (angle)

Lift System
Type

3-point or Semi-integral

Tires
Base

12.5L-15SL 20 ply implement: 303 kPa 3.0 bar (44 psi); 7.60-15 8 ply implement: 359 kPa 3.6 bar (52 psi); 7.6-15 6 ply - traction: 276 kPa 2.8 bar (40 psi)

Row Units
Type

ExactEmerge™, MaxEmerge™ 5e, or MaxEmerge™ 5 row units

Opener

Tru-Vee double disk

Row Unit Seed Hoppers

Mini-Hopper

Seed Hopper Capacity

1.6, 3 bu

Seed Hopper Capacity

56.4, 105.7 L

Seed Meters
Base Seed Meter

Vacuum

CCS Seed Capacity

55, 70, 100 bu

CCS Seed Capacity

1938.2, 2466.7, 3523.9 L

Drive System
Base

Electric drive, 56 V

Seed Monitor System
Base

SeedStar™ electronic system

Dimensions
Transport Width (Without Markers)

18.92-30.17 ft

Transport Width (Without Markers)

5.78-9.2 m

Transport Height

5.17-13.17 ft

Transport Height

1.58-4.01 m

Transport Underframe Clearance

13.2 ft

Transport Underframe Clearance

4 m

Additional Information
Recommended Tractor Horsepower

Vacuum system hydraulic drive: horsepower required: 4.5-10.4 kW 6-14 hp; Minimum tractor size: 201 kW 270 hp; Tractor recommendation: Current model (minimum) 8430 MFWD with dual rear tires and 20 front weights

Recommended Tractor Hydraulics

Hydraulic oil required to operate the planter: 227 L/min 60 gpm; Hydraulic system standby pressure: 15,513 kPa 155 bar (2250 psi); Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi); Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi)
