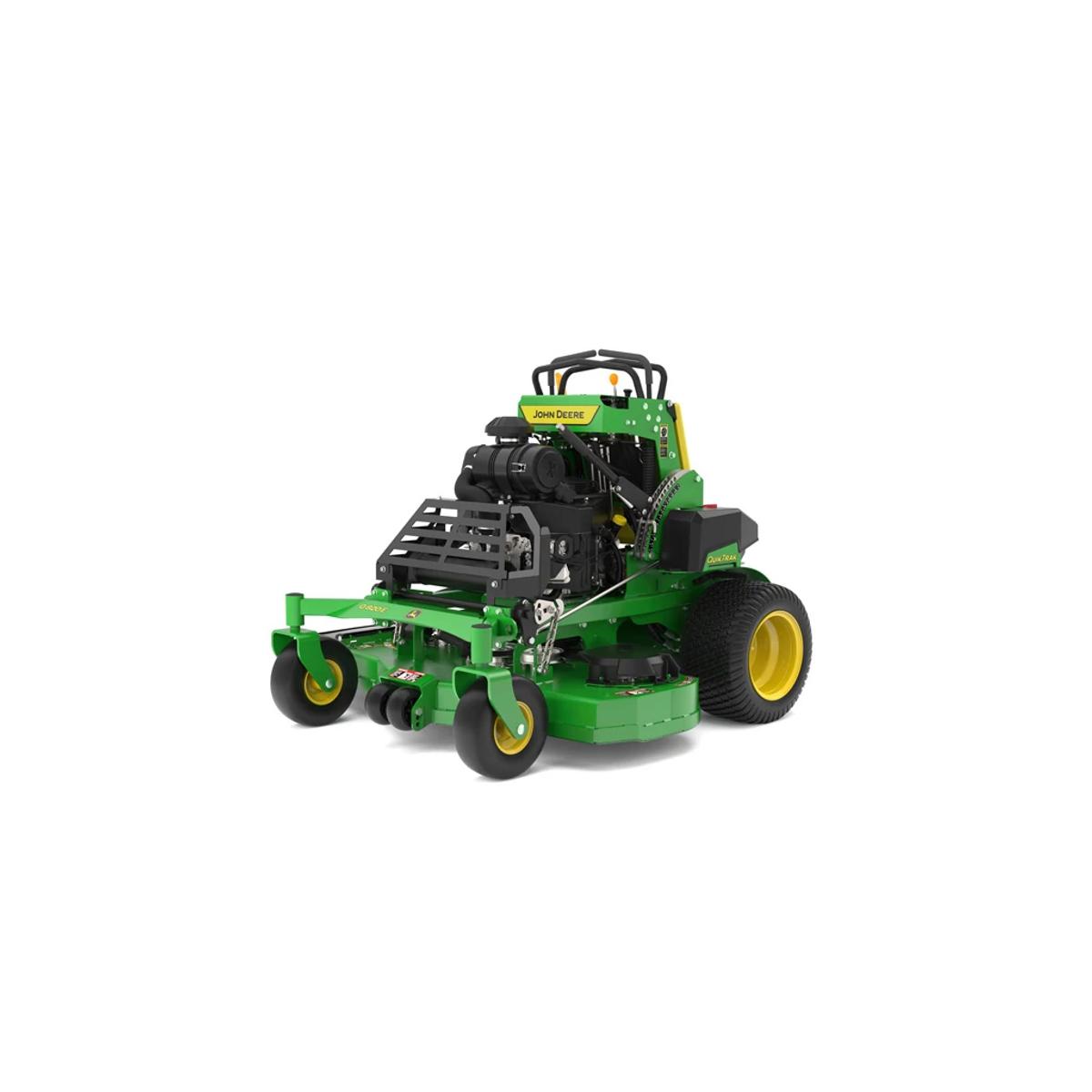

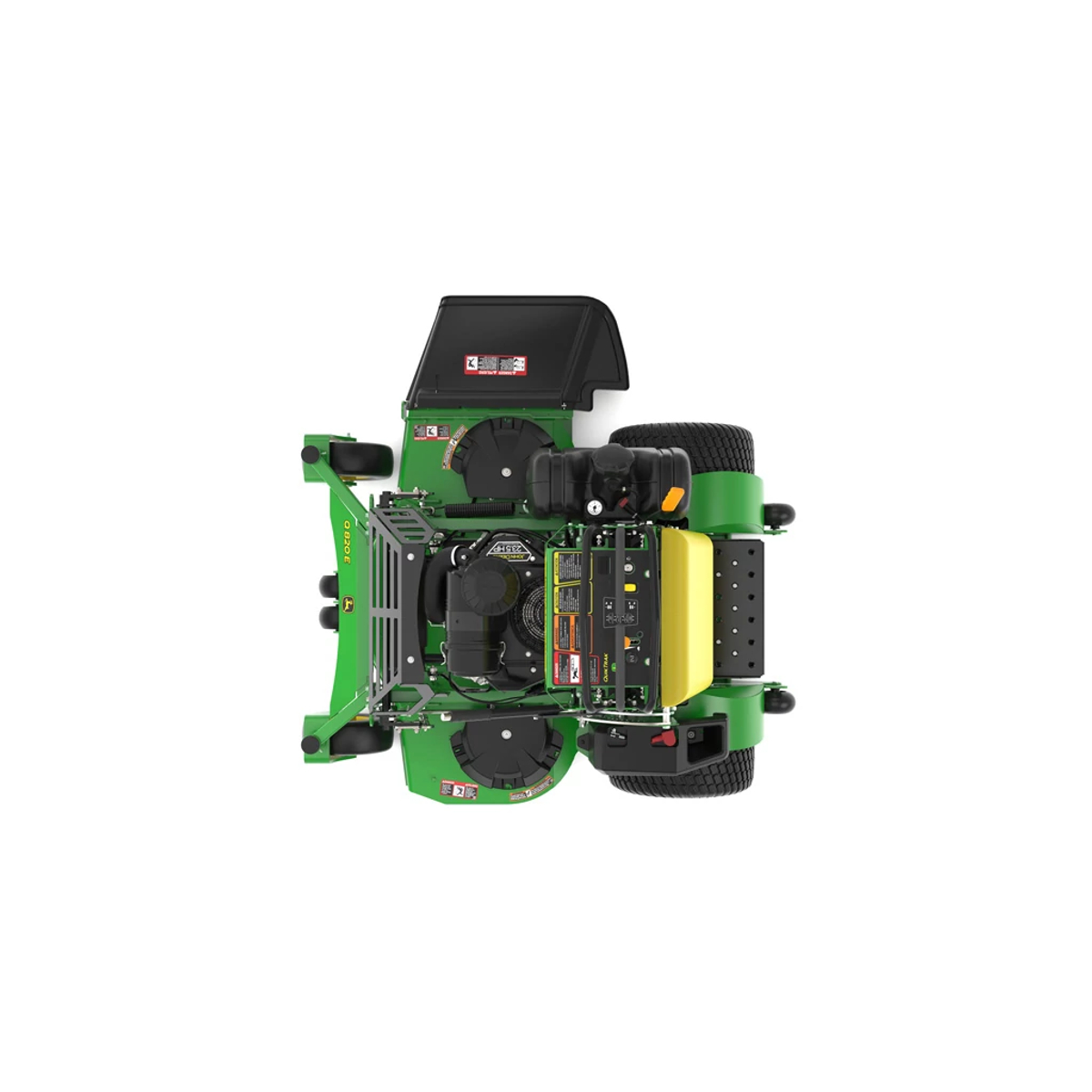

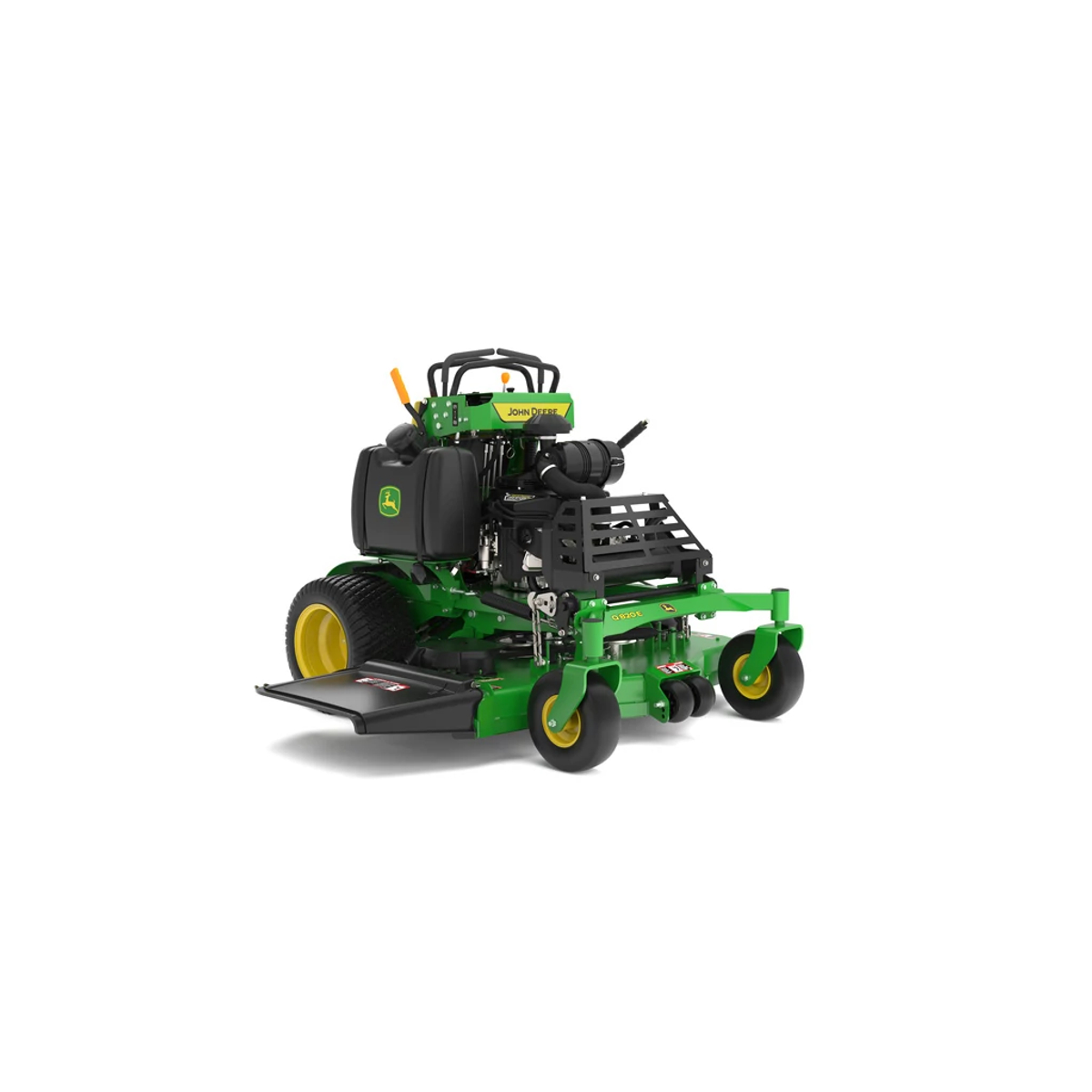

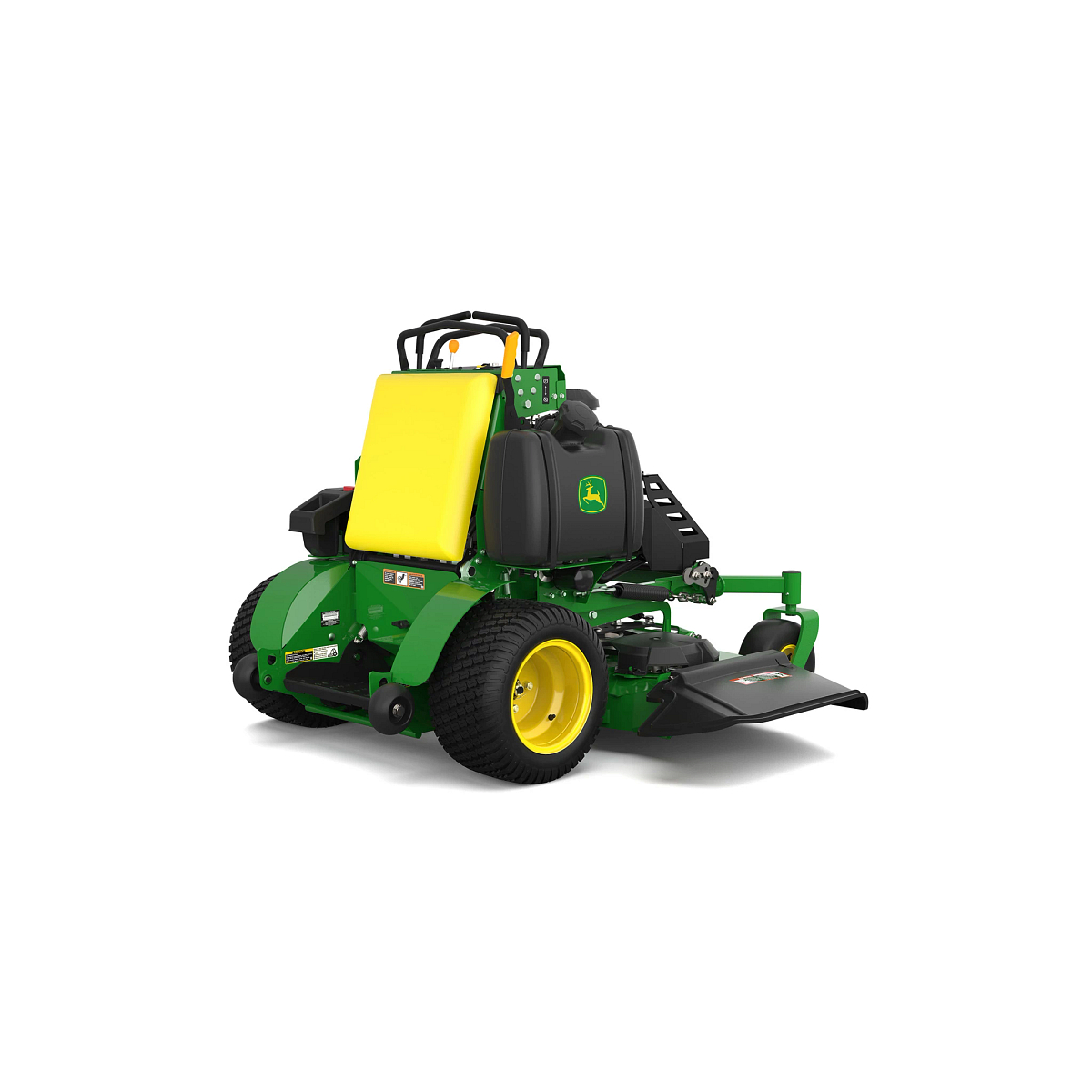

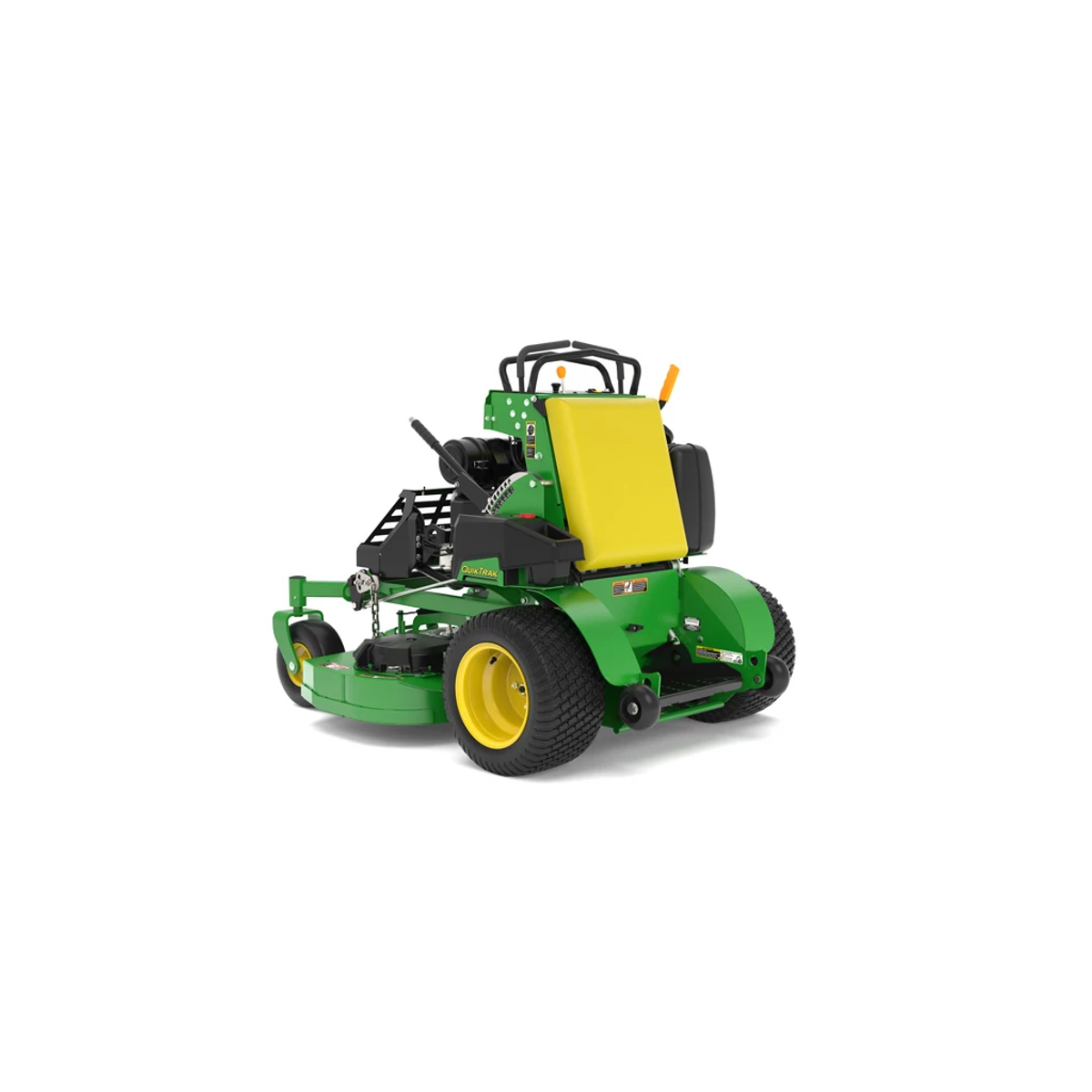

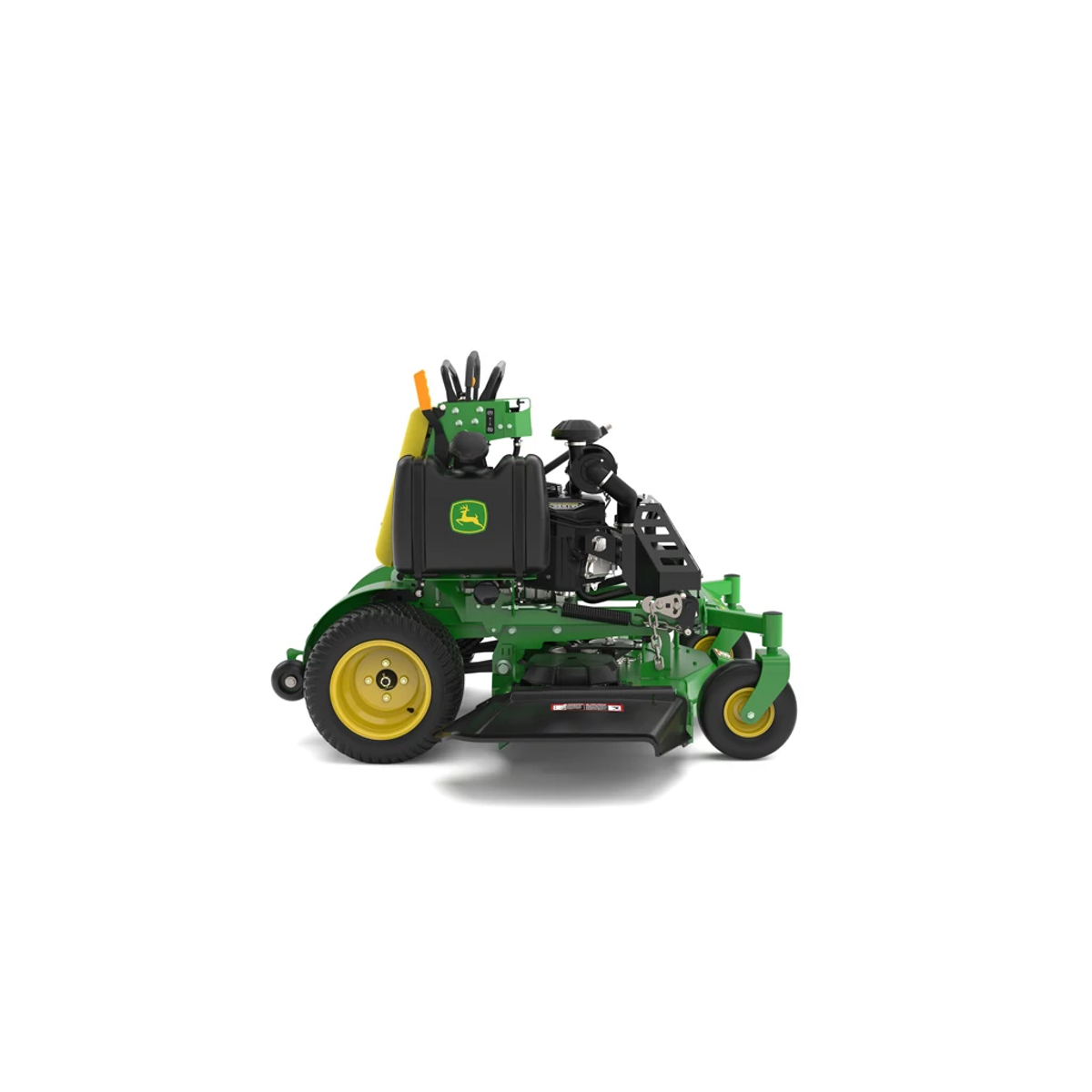

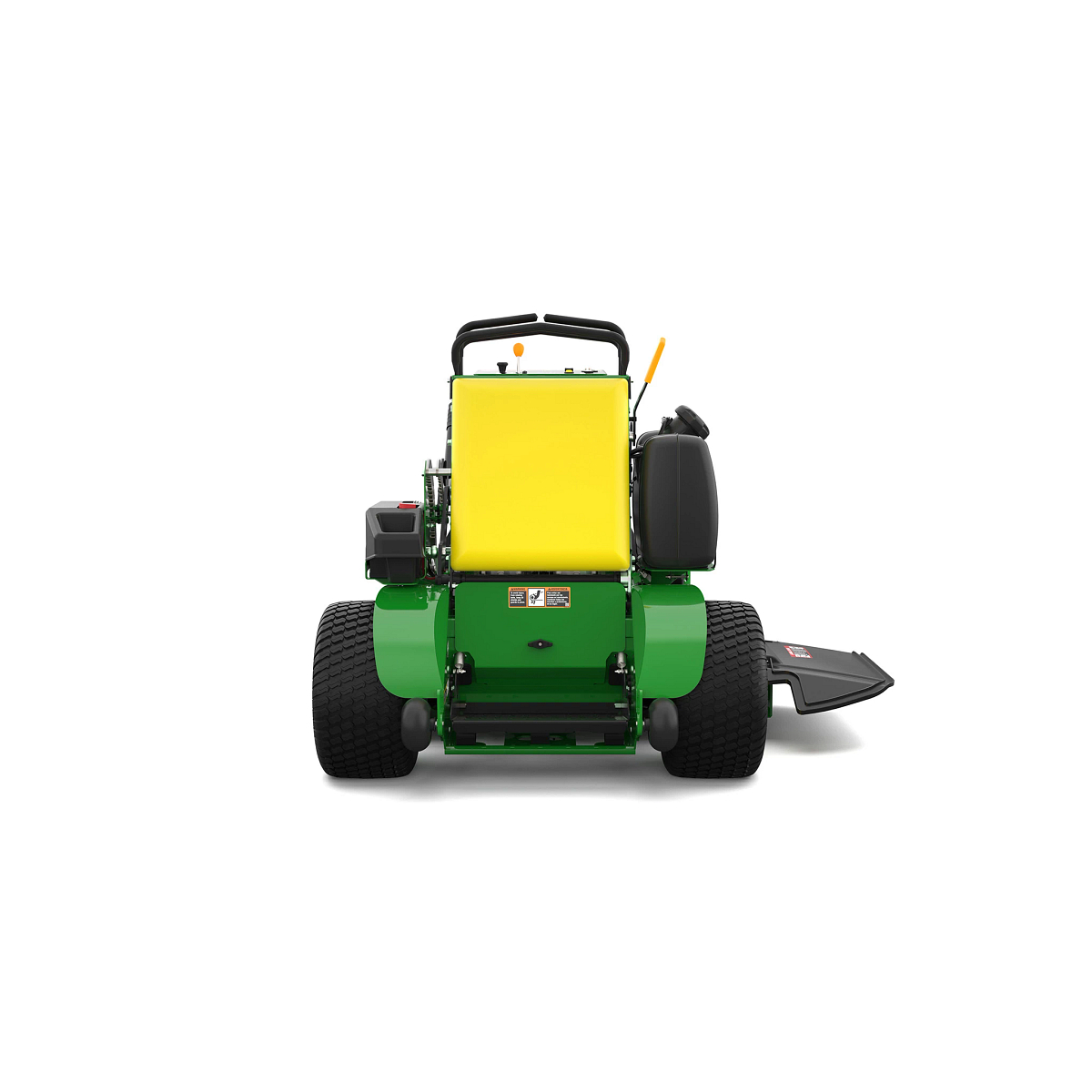

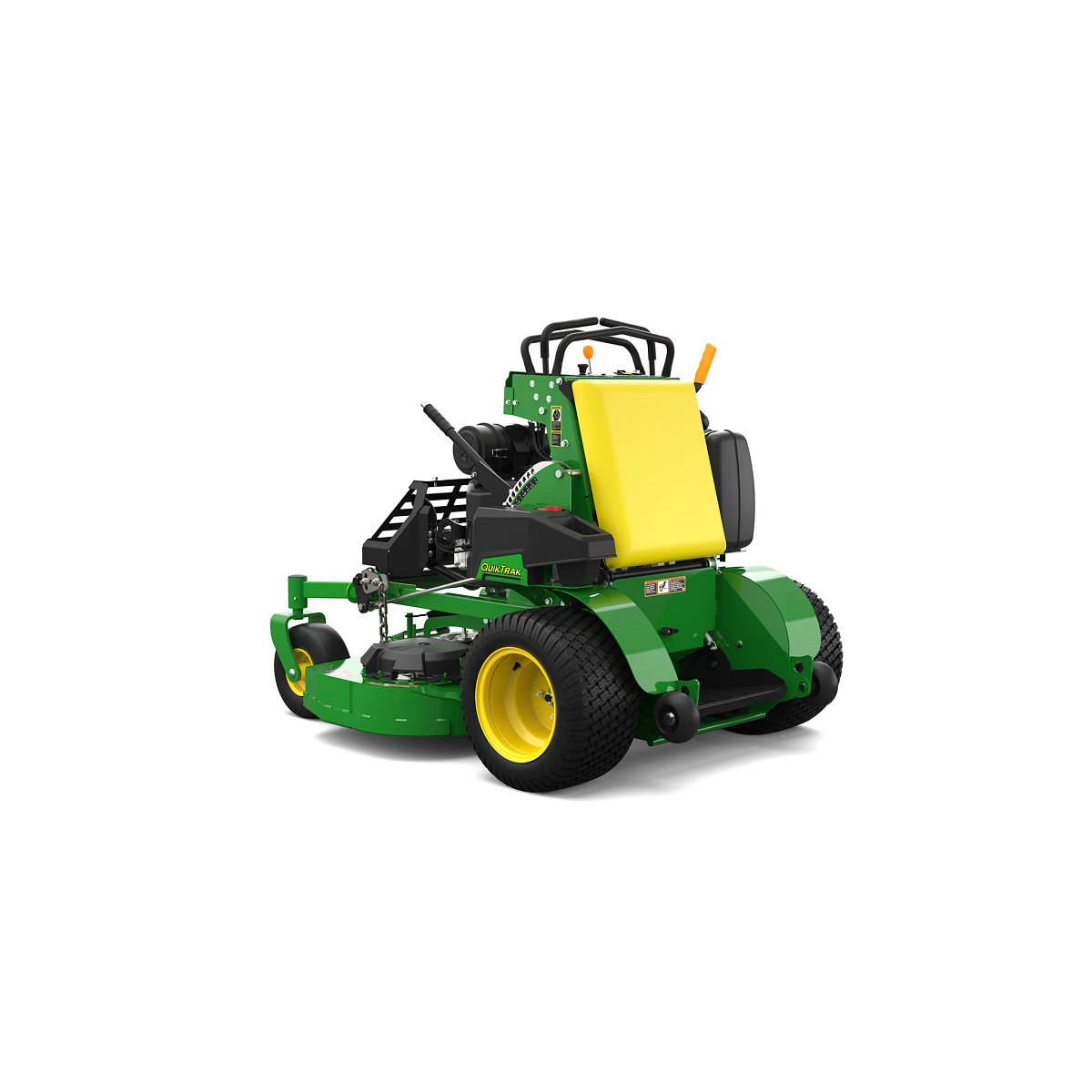

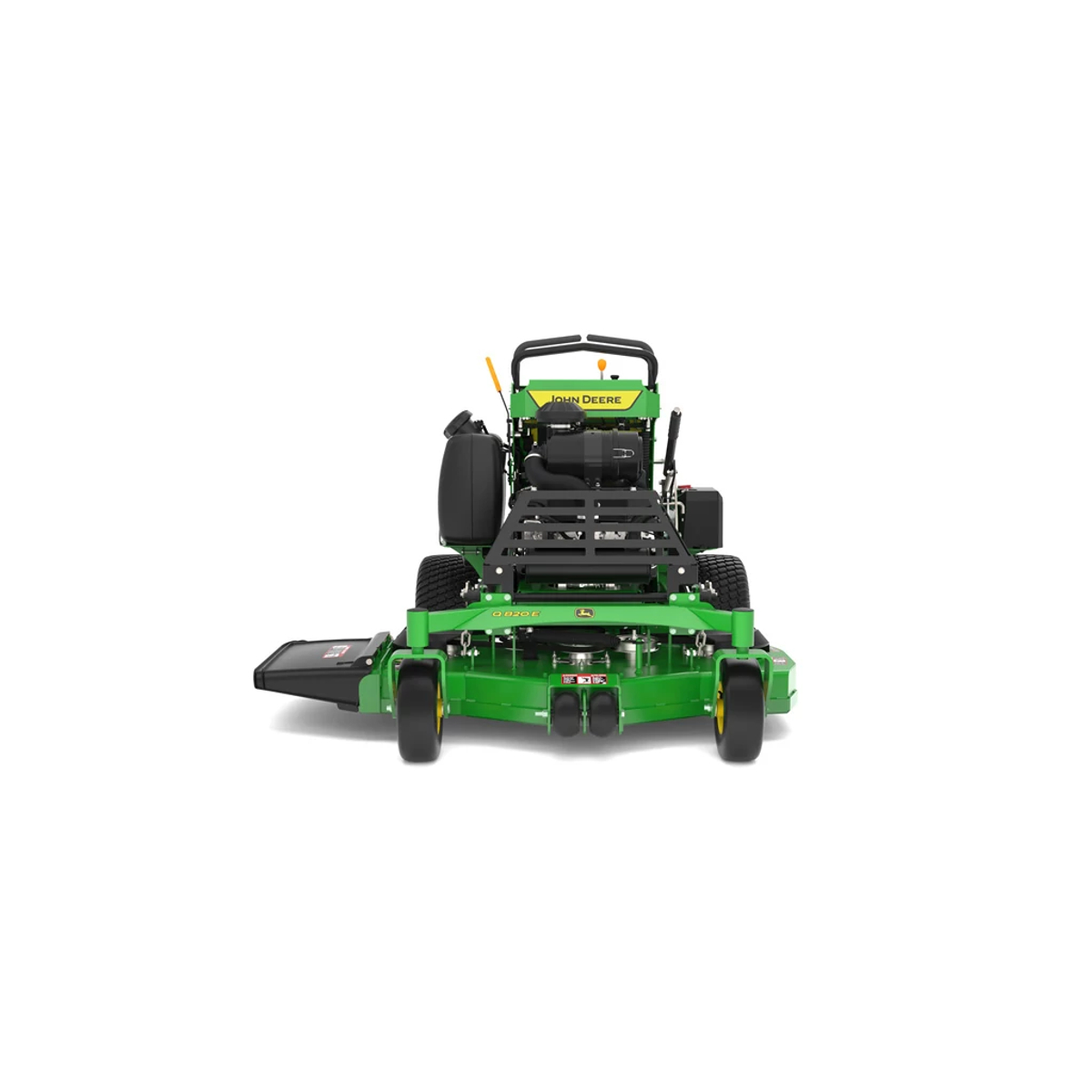

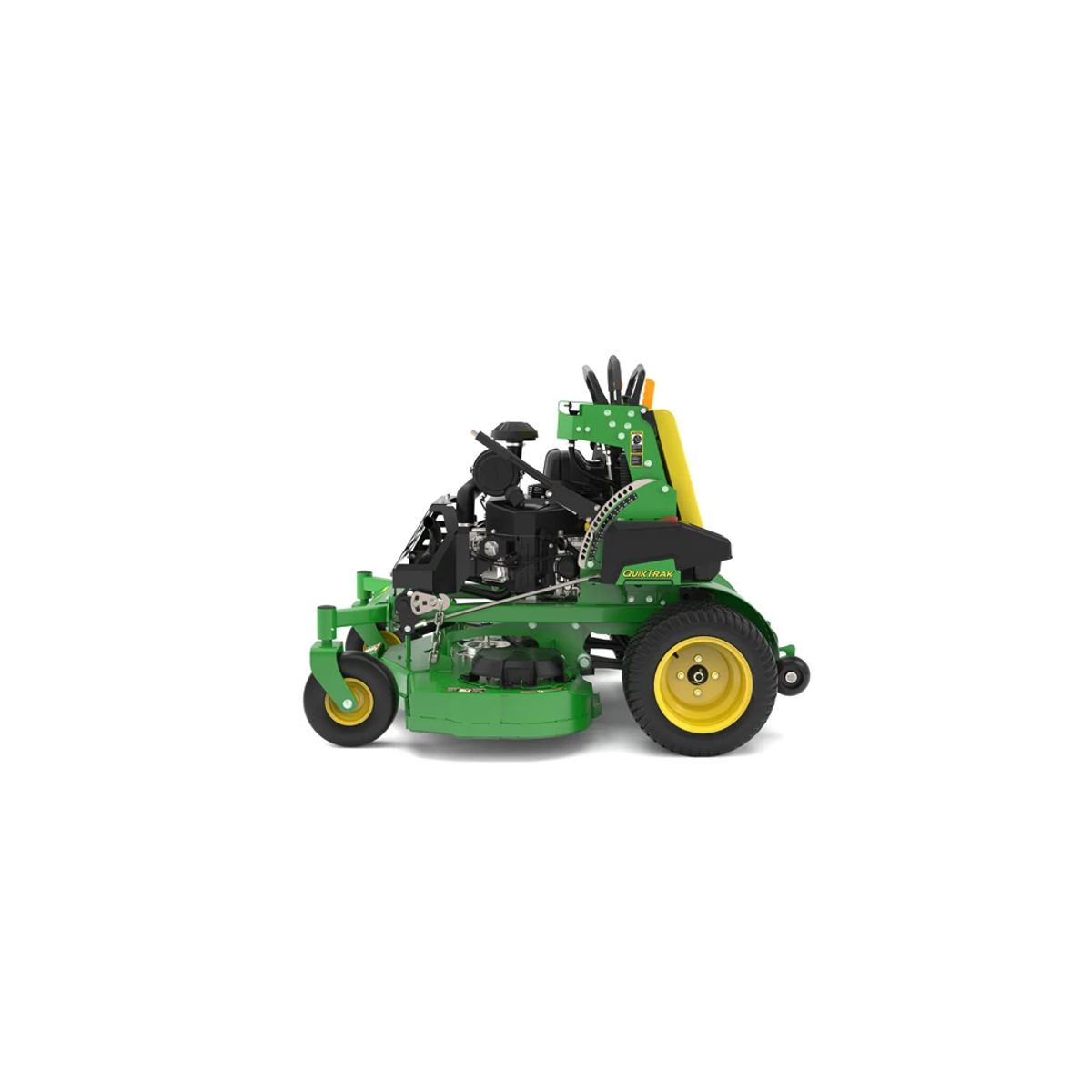

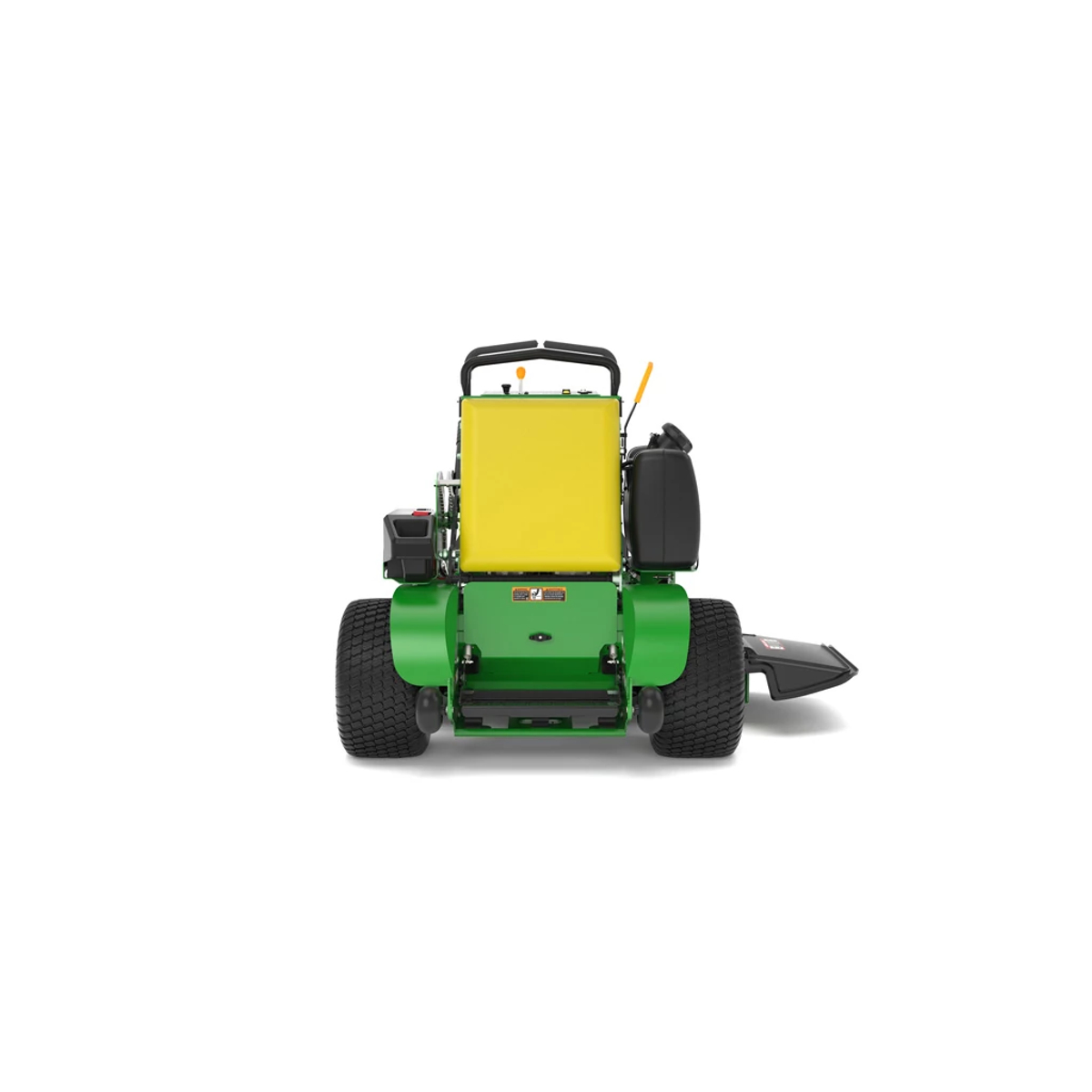

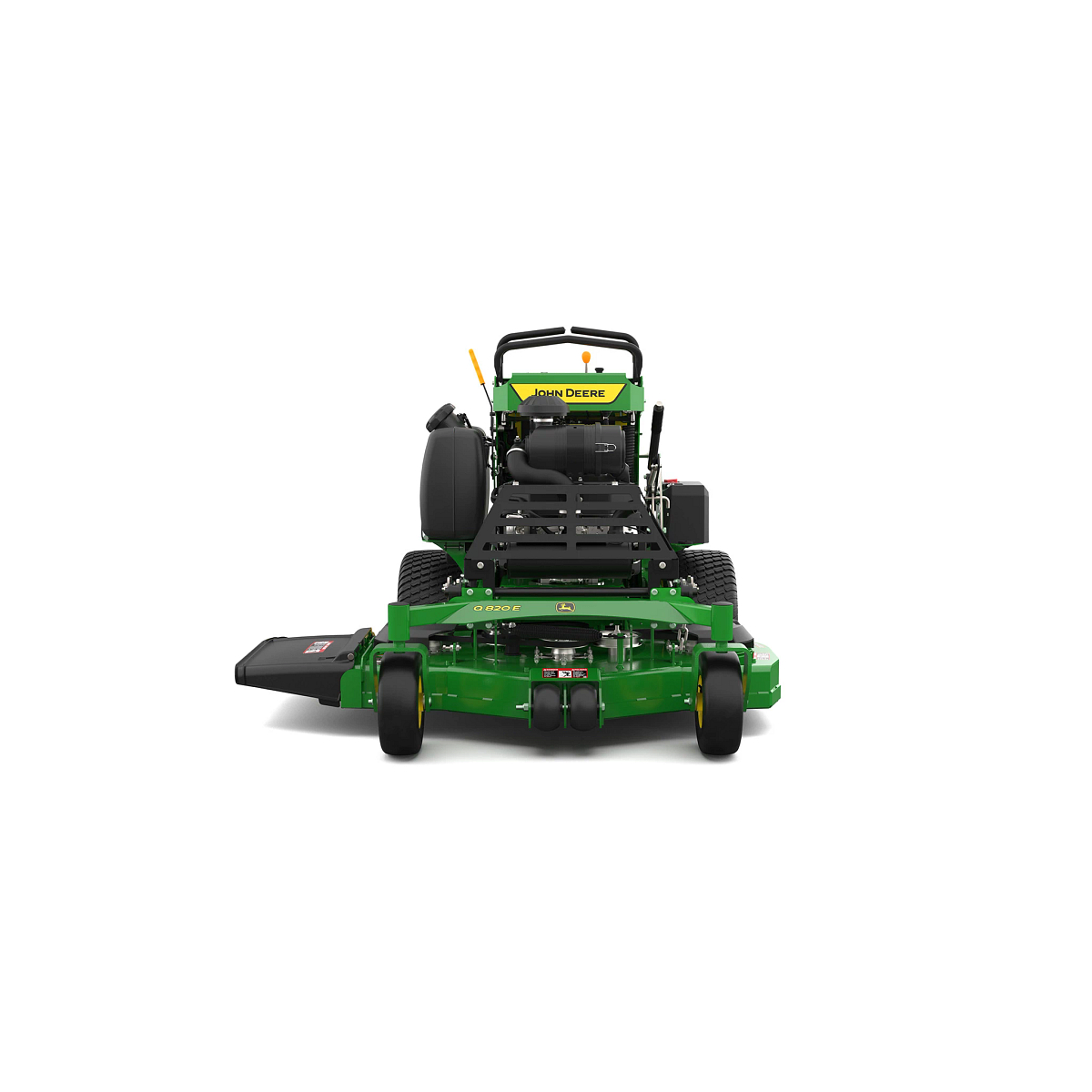

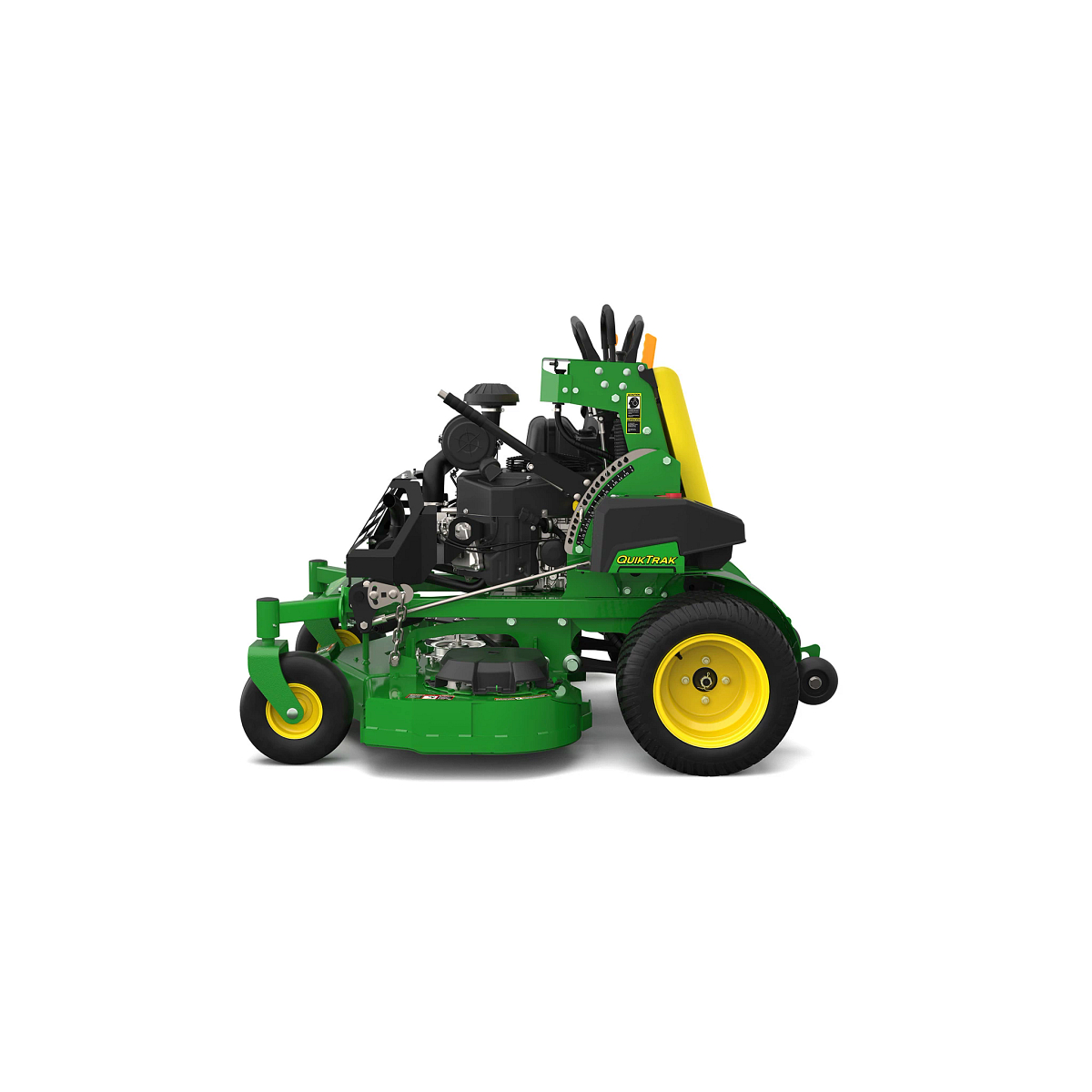

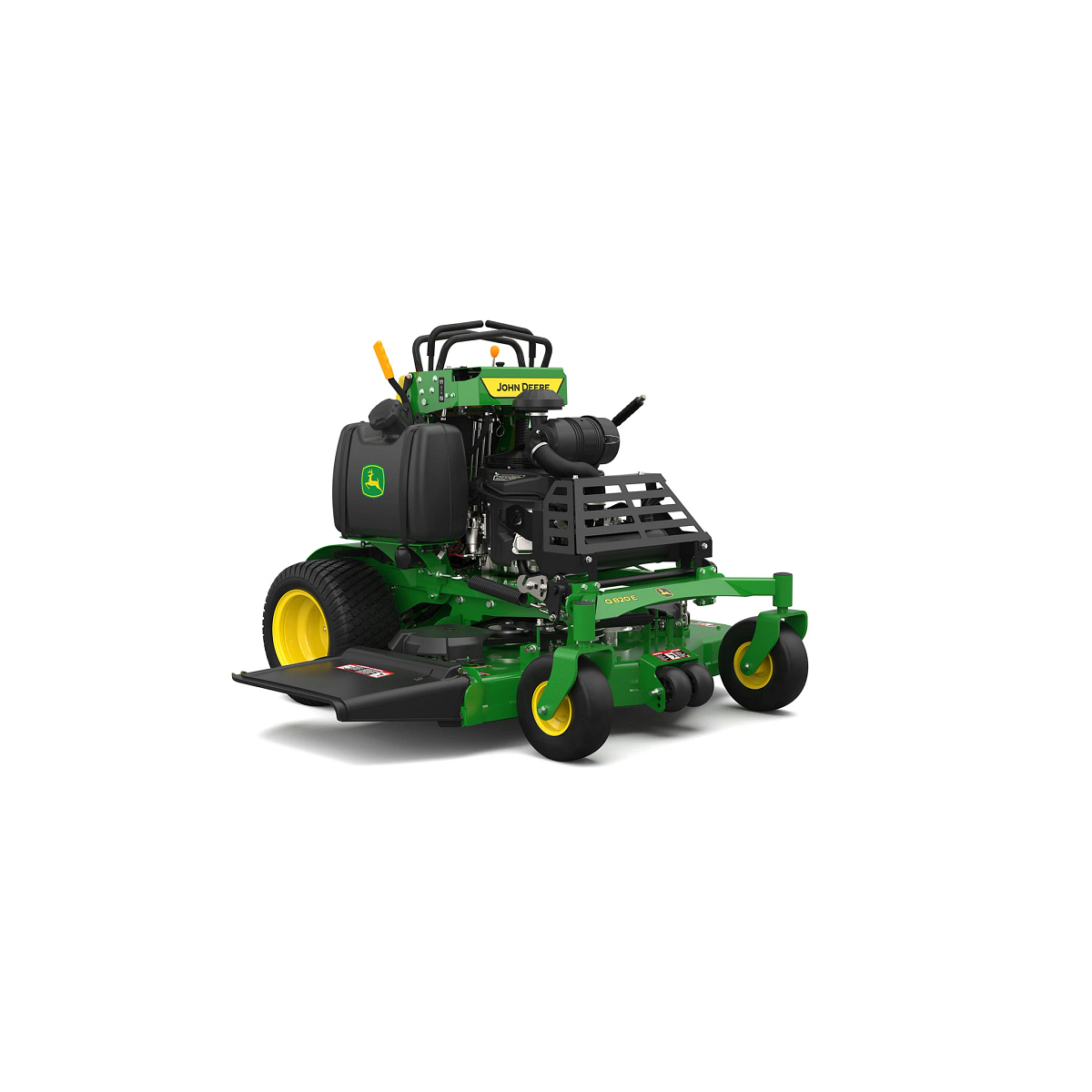

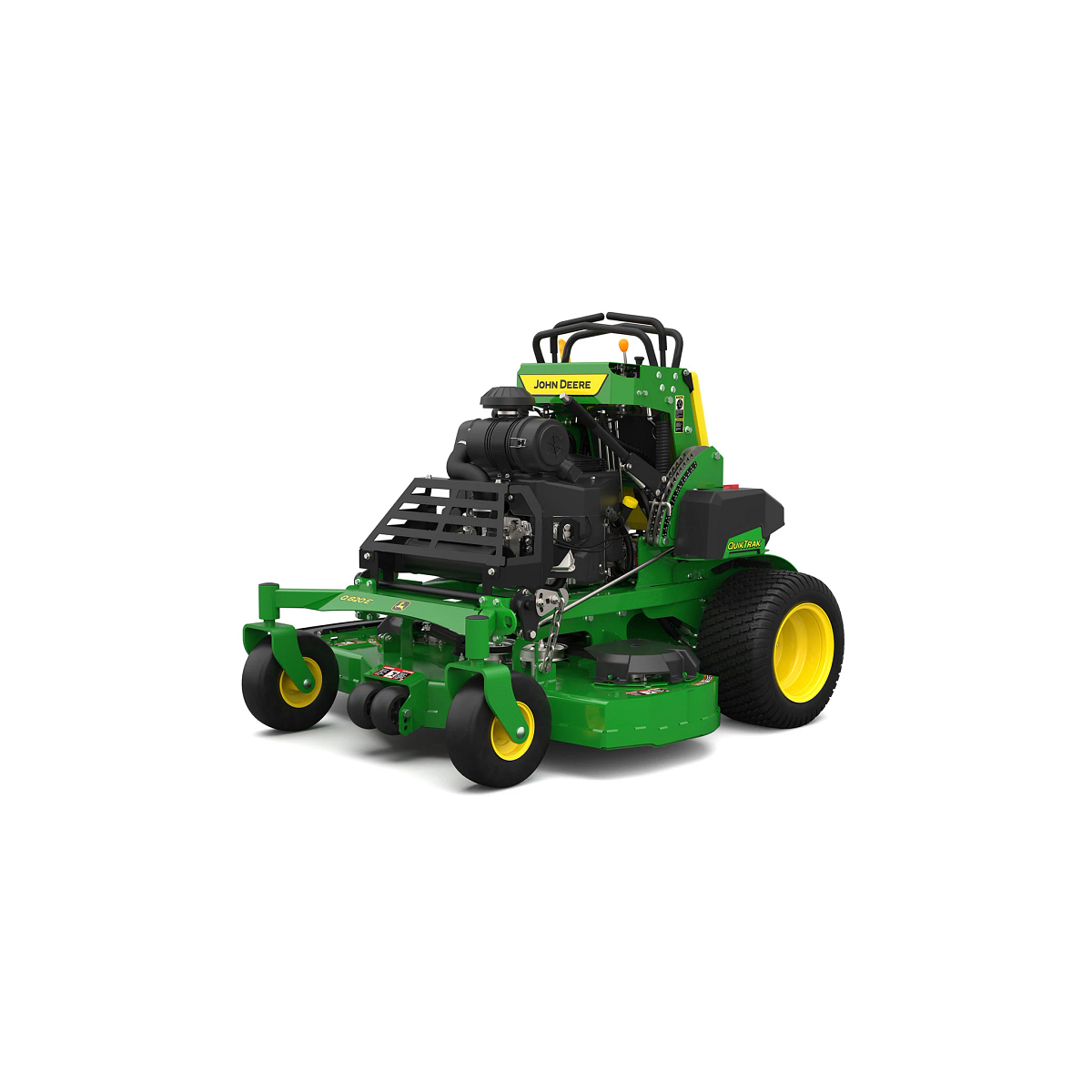

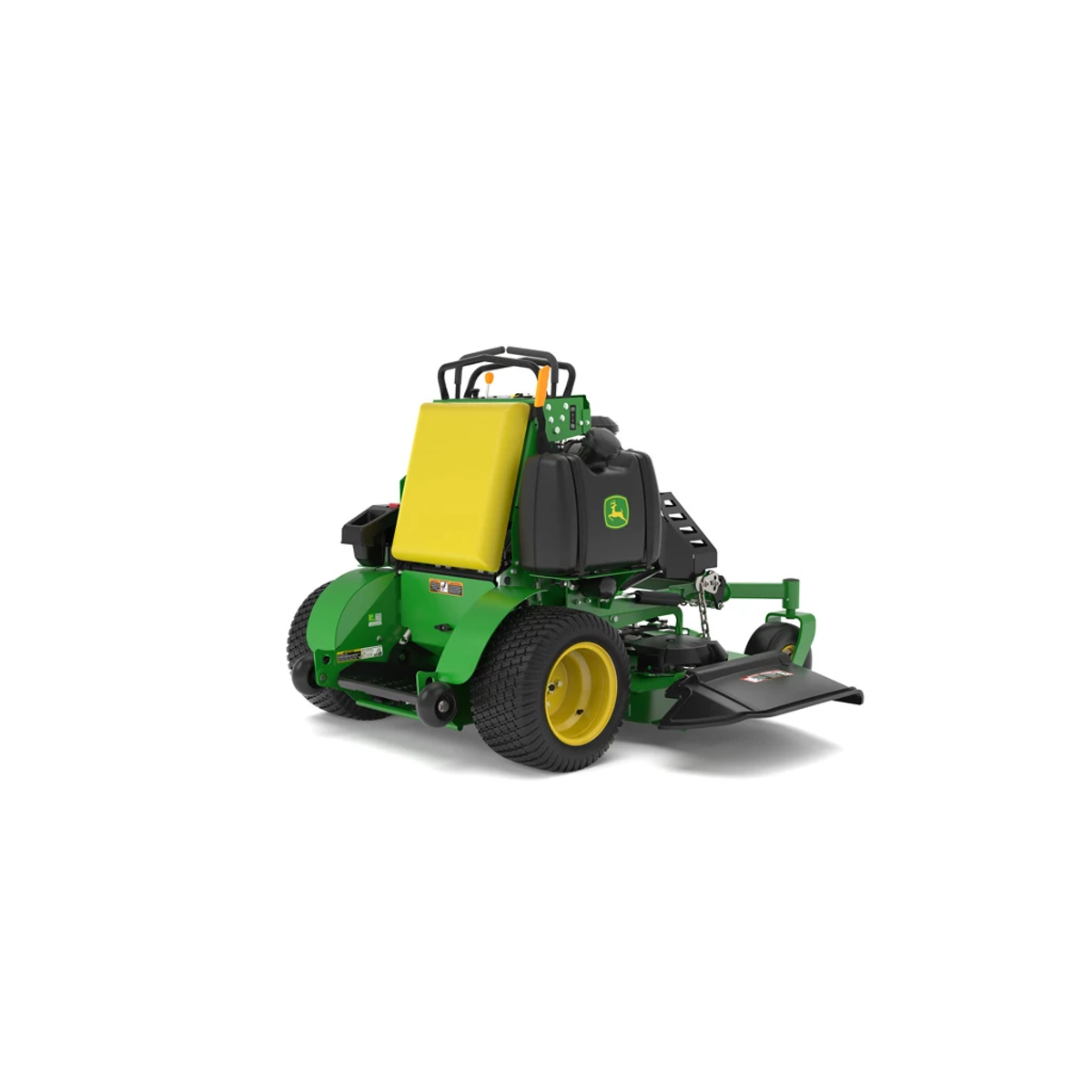

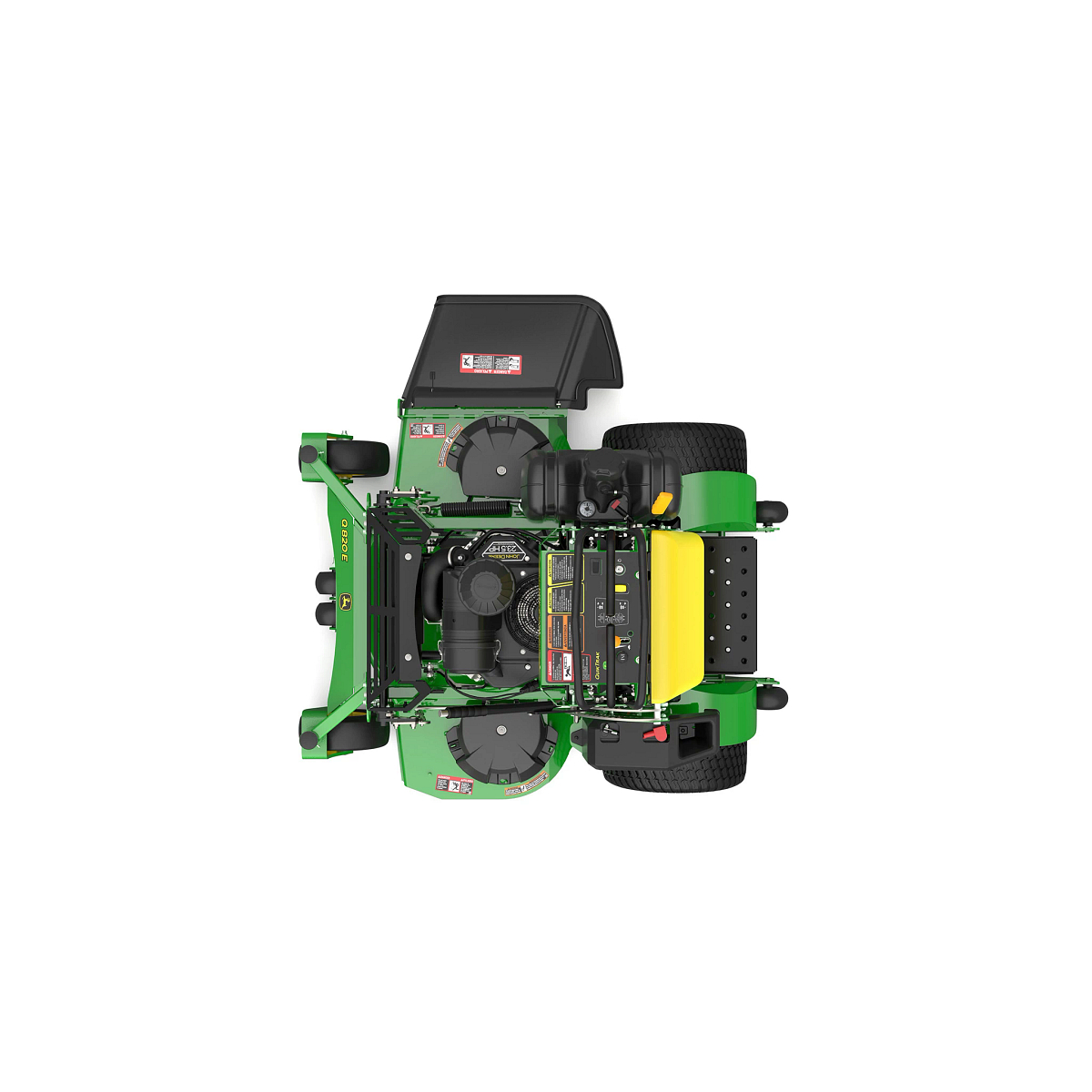

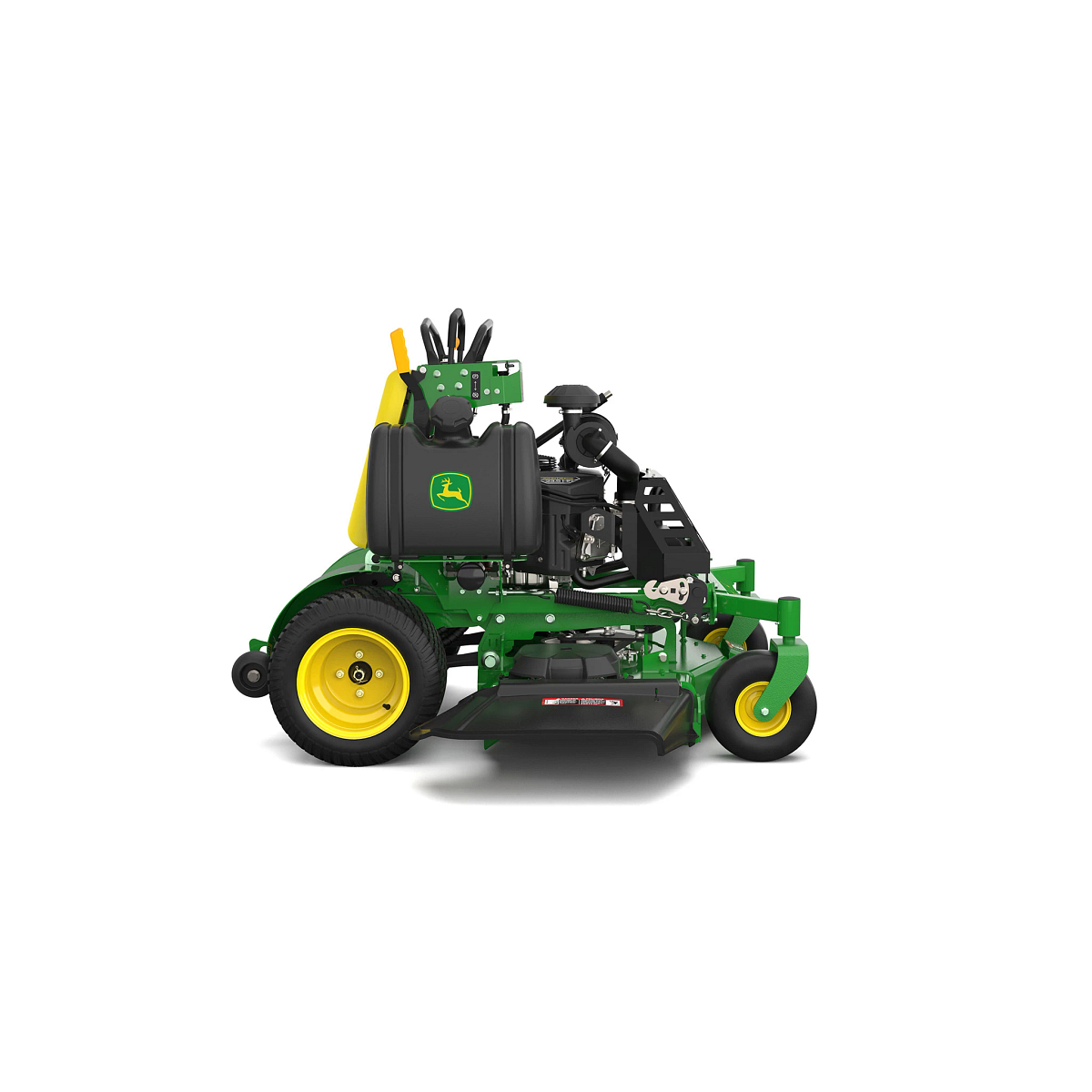

John Deere Q820E

<div class="accordion-wrap"><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Commercial-quality engine is reliable and provides excellent performance and life</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082545_rrd_q810e_engine_350x350.jpg" alt="Engine (Q810E engine shown)"><span class="caption">Engine (Q810E engine shown)</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082544_rrd_q810e_air_clearner_350x350.jpg" alt="Heavy-duty air cleaner (Q810E shown)"><span class="caption">Heavy-duty air cleaner (Q810E shown)</span> </div> </div> <p>Commercial-quality V-twin air-cooled engines power the QuikTrak™ Mowers:</p> <ul> <li>FX600V 19 hp (14.2 kW) gross at 3600 rpm (Q810E)</li> <li>FX730V 23.5 hp (17.5 kW) gross at 3600 rpm (Q820E)</li> </ul> <p>Both engines feature:</p> <ul> <li>Overhead valve design <ul> <li>More horsepower and torque per cubic inch of displacement</li> <li>Better fuel efficiency</li> </ul></li> <li>Full-pressure lubrication with full-flow filter <ul> <li>Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain</li> <li>Filtered oil reduces risk of contamination for increased engine life</li> </ul></li> <li>V-twin design <ul> <li>Fast starts</li> <li>Smooth operation</li> </ul></li> <li>Vertical shaft for efficient transfer of power to the transmission and mower</li> <li>Standard canister-type, dry replaceable, heavy-duty air cleaner <ul> <li>Q820E has dual-element air cleaner with safety element</li> </ul></li> <li>Fuel pump for consistent and reliable fuel supply to the carburetor</li> <li>Air-cooled engine design for minimum maintenance and maximum reliability</li> <li>Standard cleanout ports for easy access to remove debris collecting in cooling fins</li> <li>Aluminum cylinder block <ul> <li>Effectively dissipates heat</li> <li>Lightweight and strong construction</li> <li>Extends engine life due to elimination of debilitating engine temperatures</li> </ul></li> </ul> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k000610_q810e_oil_fill_350s.jpg" alt="Engine oil-fill/check tube, drain hose, oil filter, and cleanout port"><span class="caption">Engine oil-fill/check tube, drain hose, oil filter, and cleanout port</span> </div> </div> <p>The engine is equipped with a replaceable oil filter for longer engine life.</p> <p>&nbsp;</p> <p>Engine oil fill/check tube, oil filter, and oil drain hose are located close together for easy and convenient service.</p> <h5>Large fuel tank saves refueling time and increases productivity</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4d108007_18_636m_fuel_tank_275s.jpg" alt="Fuel tank"><span class="caption">Fuel tank</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4d108012_18_636m_fuel_275s.jpg" alt="Fuel cap, gauge, and shutoff valve"><span class="caption">Fuel cap, gauge, and shutoff valve</span> </div> </div> <p>Quality fuel-system components enhance performance and convenience:</p> <ul> <li>Large, 5.6-U.S. gal. (21.2-L) capacity <ul> <li>Wide fuel tank filler opening <ul> <li>Conveniently located</li> <li>Makes adding fuel easy and helps eliminate spillage</li> </ul></li> </ul></li> <li>Sealed and tethered fuel cap <ul> <li>Reduced fuel vapor loss</li> <li>Less chance of losing fuel cap</li> </ul></li> </ul> <p>A fuel gauge is conveniently located to keep the operator informed about the amount of fuel remaining in the tank.<br><br>A fuel shut-off valve is provided. It should be turned off whenever the QuikTrak Mower is not in use.</p> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4d027441_652b_fuel_filter.jpg" alt="Replaceable fuel filter"><span class="caption">Replaceable fuel filter</span> </div> </div> <p>A high-quality, replaceable&nbsp;fuel filter is provided to help maintain reliable engine operation.</p></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082539_rrd_q810e_deck_350x175.jpg" alt="36-in. (91-cm) fabricated mower deck"><span class="caption">36-in. (91-cm) fabricated mower deck</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082545_rrd_q810e_deck_reinforcement_350x175.jpg" alt="Mower-deck reinforcement"><span class="caption">Mower-deck reinforcement</span> </div> </div> <p>A well-designed mower deck can&nbsp;make the difference between&nbsp;just getting the job done and getting eye-catching results. The 7-gauge, 0.179-in. (4.6-mm) fabricated mower deck delivers a higher quality of cut in more diverse conditions to enhance mowing performance.<br><br>Key features of the fabricated mower deck include:&nbsp;</p> <ul> <li>36-in. (91-cm) cutting width on Q810E model and 48-in. (122-cm) cutting width on Q820E model</li> <li>Manufactured from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.</li> <li>A compact footprint delivers greater maneuverability when working in tight quarters.</li> <li>A deep-deck design delivers excellent airflow, so material is processed quickly and efficiently.</li> <li>A powerful vacuum effect is created by the deck's unique air-flow design, which pulls more grass upright so that the blades can cut more evenly.</li> </ul> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082544_rrd_q810e_deflector_350x350.jpg" alt="Flexible mower-discharge deflector"><span class="caption">Flexible mower-discharge deflector</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082544_rrd_q810e_caster_wheels_350x350.jpg" alt="Caster wheels"><span class="caption">Caster wheels</span> </div> </div> <p>The wide-discharge opening and raised deflector provide even clipping dispersal for an excellent finished appearance in all conditions.<br><br>Caster wheels with flat-free tires contribute to a smooth, even cutting job:</p> <ul> <li>Large,&nbsp;flat-free caster wheels carry the mower deck smoothly over the lawn.</li> <li>Caster wheels are recessed to reduce the vehicle footprint and turning radius. <ul> <li>With the wheels less exposed, there is less chance they will get snagged by immovable obstacles, thus improving maneuverability, and reducing damage.</li> </ul></li> </ul> <p>&nbsp;</p> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082542_rrd_q810e_lift_lever_350x350.jpg" alt="Mower lift lever"><span class="caption">Mower lift lever</span> </div> </div> <p>The QuikTrak is equipped with a floating mower deck that offers several advantages:</p> <ul> <li><p>&nbsp;The lift lever allows the operator to raise the mower to the fully-raised position from the operator's station.</p> <ul> <li><p>Convenient when transporting from one mowing area to another and when loading/unloading.</p></li> <li><p>Allows the operator to raise the mower over roots or other obstructions in the lawn on the fly.</p></li> </ul></li> <li>Lift-assist springs reduce the effort required to raise the mower deck.</li> </ul> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k000609_q810e_cut_height_350s.jpg" alt="Cutting-height adjustment"><span class="caption">Cutting-height adjustment</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k000082_q810e_36fab_spindle_cover_350s.jpg" alt="Mower deck spindle cover"><span class="caption">Mower deck spindle cover</span> </div> </div> <p>Mower cutting height can be set from 1.5-in. (3.8-cm) to 5-in. (12.7-cm) in 0.25-in. (0.64-cm) increments:</p> <ul> <li>Pull the lift lever back to the full-raised position.</li> <li>Remove the tethered pin and place it at the desired cutting height.</li> <li>Lower the lift lever; the lift lever and mower will stop at the desired cutting height.</li> </ul> <p>Mower deck spindle covers allow for cleaning while installed and can be removed without tools for maintenance. A single belt drive has low repair costs and accessible for cleaning.</p> <h5>Optional mulching attachment</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4c003771_eztrak_48hp_mul_kit_stu_275s.jpg" alt="Optional mulching attachment and blades (similar design shown)"><span class="caption">Optional mulching attachment and blades (similar design shown)</span> </div> </div> <p dir="ltr" style="margin-right: 0px;">Optional mulching attachment and special mulching blades&nbsp;are available:</p> <ul dir="ltr"> <li> <div style="margin-right: 0px;"> This is a high-performance mulching attachment that includes formed steel baffles to control the material for superior performance. </div></li> <li> <div style="margin-right: 0px;"> The special mulching blades can also be used for side discharging, though overall cutting performance may&nbsp;be slightly less than with the standard blades. </div></li> </ul></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Large operator platform and quality leaning pad enhance operator comfort</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k088050_q810e_350x350.jpg" alt="QuikTrak™ Mower (Q810E shown)"><span class="caption">QuikTrak™ Mower (Q810E shown)</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082543_rrd_q810e_leaning_pad_350x350.jpg" alt="Operator platform and leaning pad"><span class="caption">Operator platform and leaning pad</span> </div> </div> <p>The large operator platform&nbsp;is cushioned to absorb shock to give&nbsp;the operator a smooth and comfortable ride.<br><br>A high-quality leaning pad is provided for operator comfort and to insulate the operator from heat given off by the machine.</p> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082543_rrd_q810e_storage_350x350.jpg" alt="Storage pocket"><span class="caption">Storage pocket</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k088122_q810e_controls_450x350.jpg" alt="Operator controls"><span class="caption">Operator controls</span> </div> </div> <p>A storage pocket on the battery box&nbsp;provides a convenient place for the operator to store a cell phone, gloves, etc.<br><br>Control levers are covered with cushioning material for operator comfort. Two stationary reference bars are provided for operator comfort and convenience:</p> <ul> <li>Front reference bar is included to control speed and reduce fatigue from control lever operation.</li> <li>Rear reference bar is included to make reverse operation easy while maintaining operator confidence.</li> </ul></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Controls are easy to locate and use for operator comfort and productivity</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k088122_q810e_controls_450x350.jpg" alt="Operator controls"><span class="caption">Operator controls</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082567_rrd_q810e_overhead_controls_350x350.jpg" alt="Control console (Q810E shown)"><span class="caption">Control console (Q810E shown)</span> </div> </div> <p>&nbsp;Controls are color coded and logically placed to make&nbsp;them easy for the operator to find and use:</p> <ul> <li>Ground speed and direction are easily controlled by moving the two hand-lever hydrostatic drive controls forward or reverse. <ul> <li>Speeds are infinitely variable up to 8-mph (12.9-km/h) forward and 3.5-mph (5.6-km/h) reverse.</li> <li>A positive neutral-lock holds the control levers in neutral when the park brake is engaged.</li> </ul></li> <li>Two stationary reference bars are provided for operator convenience and security. <ul> <li>Front reference bar is included to control speed and reduce fatigue from control lever operation.</li> <li>Rear reference bar is included to make reverse operation easy while maintaining operator confidence.</li> </ul></li> <li>Control levers return to neutral automatically for safety and convenience.</li> <li>Separate choke is easy to locate and use. <ul> <li>Less adjustment is needed with the separate choke.</li> </ul></li> </ul> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082544_rrd_q810e_park_brake_350x350.jpg" alt="Park brake lever"><span class="caption">Park brake lever</span> </div> </div> <p>A&nbsp;tire brake is provided to give&nbsp;stability for parking the vehicle on hillsides&nbsp;and for&nbsp;transport; it should be engaged whenever the machine is not being used:</p> <ul> <li>Brake must be engaged to start the machine, for added safety.</li> <li>The tire brake bars are easily adjusted, if necessary, to maintain effective operation.</li> </ul> <h5>Mower deck height-of-cut adjustment</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082542_rrd_q810e_lift_handle_350x350.jpg" alt="Mower deck lift handle and height-of-cut adjustment"><span class="caption">Mower deck lift handle and height-of-cut adjustment</span> </div> </div> <p style="list-style-type: none;">An easy-to-use cutting height adjustment system allows the operator to adjust the mower deck cutting height with no tools and minimal effort:</p> <ul> <li>Pull the lift lever back to the fully raised position.</li> <li>Remove the tethered pin and place it at the desired cutting height.</li> <li>Lower the lift lever; the lift lever and mower will stop at the desired cutting height.</li> </ul> <p>&nbsp;</p> <p><em>NOTE: Additional information on mower cutting height adjustment can be found in the mower deck section.</em></p></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Exclusive three-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k088095_q800_group_450x350.jpg" alt="Q800 QuikTrak Mowers"><span class="caption">Q800 QuikTrak Mowers</span> </div> </div> <h5>Hassle-free three-year warranties</h5> <div class="seccion-images"></div> <p>The E and M Series QuikTrak mowers have a 1200-hour or 36-month, whichever comes first, bumper-to-bumper warranty. The R Series mowers have a 1500-hour or 36-month, whichever comes first, warranty. All QuikTrak Mowers also have an unlimited hour 24-month warranty. The warranty is hassle free, with John Deere covering the complete machine.</p> <p>&nbsp;</p> <p>The QuikTrak warranties are also aligned with John Deere’s commercial walk-behind and Z900 ZTrak Mowers so you can roll your entire fleet on one contract, with one warranty duration, and one payment schedule.</p></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Maintenance is simple and easy to reduce time and cost</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082545_rrd_q810e_350s.jpg" alt="Q810E QuikTrak™ Mower"><span class="caption">Q810E QuikTrak™ Mower</span> </div> </div> <p>All service and maintenance points are easy to access and within reach.</p> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082544_rrd_q810e_air_clearner_350x350.jpg" alt="Heavy-duty air cleaner"><span class="caption">Heavy-duty air cleaner</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082545_rrd_q810e_engine_350x350.jpg" alt="Engine oil-fill/check tube, drain hose, oil filter, and cleanout port"><span class="caption">Engine oil-fill/check tube, drain hose, oil filter, and cleanout port</span> </div> </div> <p>Heavy-duty air cleaner is easy to reach and easy to service:</p> <ul> <li><p>Standard canister-type, dry replaceable, heavy-duty air cleaner.</p> <ul> <li><p>Q820E has dual-element air cleaner with safety element.</p></li> </ul></li> <li>Elements are easy to access and easy to change.</li> </ul> <p>Engine oil service points are grouped together in easy-to-reach locations:</p> <ul> <li><p>Reduces the time required to check and/or change the oil and filter.</p></li> <li><p>Oil drain hose makes draining oil easy and clean.</p></li> </ul> <p>Clean out ports provide assist to clean engine fins for optimum cooling.</p> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4a044554_14_636m_stu_service.jpg" alt="Leaning pad raised for service access"><span class="caption">Leaning pad raised for service access</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4a044557_14_636m_stu_trans_reservoir.jpg" alt="Periodic service chart"><span class="caption">Periodic service chart</span> </div> </div> <p>Simply raising the leaning pad exposes the hydrostatic oil reservoir, control linkage, and other service areas.<br><br>A periodic service chart is provided&nbsp;for convenience in keeping up on required service.</p> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k000082_q810e_36fab_spindle_cover_350s.jpg" alt="Mower deck spindle cover"><span class="caption">Mower deck spindle cover</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k000083_q810e_deck_drive_350s.jpg" alt="Mower deck drive with spindle covers removed"><span class="caption">Mower deck drive with spindle covers removed</span> </div> </div> <p>Mower deck spindle covers allow for cleaning while installed and can be removed without tools for maintenance. A single belt drive has low repair costs and accessible for cleaning.</p> <p>&nbsp;</p> <p>Remove service access shields on the mower deck, battery box, etc. to service the machine:</p> <ul> <li>Panels are easy to remove and install.</li> </ul> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4d027455_652r_rod_ends.jpg" alt="Hydrostatic transmission control linkage"><span class="caption">Hydrostatic transmission control linkage</span> </div> </div> <p>Threaded ball and socket rod ends are used throughout the QuikTrak Mowers:</p> <ul> <li>Provide precise control over a long period of time.</li> <li>Easily replaced when necessary.</li> </ul> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4d108011_18_636m_access_panel_275s.jpg" alt="Convenient access panel"><span class="caption">Convenient access panel</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4a044557_14_636m_stu_hydro_pumps.jpg" alt="Hydrostatic pump maintenance access"><span class="caption">Hydrostatic pump maintenance access</span> </div> </div> <p>Remove service access cover to check and service the hydrostatic pumps and motors. Transmission bypass valves enable moving the vehicle without the engine running.</p> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082543_rrd_q810e_storage_350x350.jpg" alt="Battery box"><span class="caption">Battery box</span> </div> </div> <p>A secure battery box protects the battery and provides access to the terminals.</p> <h5>Quick response (QR) codes link to owner information web pages</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082548_q810e_qr_code_350x350.jpg" alt="QR (quick response) code label on rear of mower"><span class="caption">QR (quick response) code label on rear of mower</span> </div> </div> <p>To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located on the rear of the mower, left of the foot platform. The owner information web pages that include links to:</p> <ul> <li>Safety and how-to videos Operator’s manuals</li> <li>Parts catalogs</li> <li>Maintenance reminder sheets Attachments</li> <li>Warranty statements</li> </ul> <h5>Tie-down points</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4a044577_14_636m_stu_tow_hole.jpg" alt="Front tie-down"><span class="caption">Front tie-down</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4d108006_18_636m_curb_wheels_275s.jpg" alt="Rear-tie down"><span class="caption">Rear-tie down</span> </div> </div> <p>Four tie-down locations, two at the front and two at the rear, are provided for safely towing or anchoring the vehicle.</p></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Compact design for easy hauling and excellent maneuverability</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082567_rrd_q810e_overhead_300x350.jpg" alt="Overhead view of Q810E showing compact design"><span class="caption">Overhead view of Q810E showing compact design</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082542_rrd_q810e_left_450x350.jpg" alt="Q810E showing compact design"><span class="caption">Q810E showing compact design</span> </div> </div> <p>From the operator's platform to the mower deck, John Deere QuikTrak™&nbsp;Mowers have a compact and functional design:</p> <ul> <li>The compact design allows the QuikTrak to operate in tighter areas that a larger machine cannot. Often, this means the area can be mowed with a QuikTrak so it is not necessary to switch to a walk-behind mower, reducing the time on site.</li> <li>With the compact design of QuikTrak Mowers, less space is required on a truck or trailer - which can mean there is room for an extra mower, resulting in less time on property, saving time and money.</li> </ul> <div class="seccion-images"></div> <p>Whether mowing hills or on level terrain, trimming or mowing straight-away, the operator of a John Deere QuikTrak can affect the performance of the machine with their body:</p> <ul> <li>The compact design of the QuikTrak allows the operator to use their body to help control the machine.</li> <li>The innovative QuikTrak design puts the operator in line with the rear axle to keep traction when mowing across slopes, providing greater control.</li> <li>Faster ground speeds get work done quicker.</li> <li>Better traction on slopes gives more control and increased productivity.</li> <li>Superior stability gives more control and confidence when operating.</li> <li>Better visibility allows for quick operator reaction times to changing terrain and obstructions.</li> <li>Standing area is designed for improved range of motion to allow the operator more room to move and avoid obstacles.</li> <li>Minimal operator station obstruction allows safe and fast exits for clearing mower-path obstacles.</li> <li>Operator area is designed for more comfort and less fatigue.</li> </ul> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082544_rrd_q810e_caster_wheels_350x350.jpg" alt="Inset caster wheels (Q810E shown)"><span class="caption">Inset caster wheels (Q810E shown)</span> </div> </div> <p>John Deere QuikTrak Mowers are designed, tested, and manufactured to provide the best commercial mowing machines available:</p> <ul> <li><p>The shape of the front edge of the mower deck allows caster wheels to be set back further, closer to the blades, for more effective ground following capability.</p></li> <li><p>Compact design takes less space for mowing tighter areas and may allow room for an extra machine when hauling to the worksite.</p></li> </ul></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Frame is compact and durable for productivity and long life</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082546_rrd_q810e_frame_450x350.jpg" alt="Q810E QuikTrak™ Mower frame"><span class="caption">Q810E QuikTrak™ Mower frame</span> </div> </div> <p>QuikTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability:</p> <ul> <li>More-rounded corners contribute to a clean, attractive appearance.</li> <li>Greater strength results from eliminating sharp angles where peak loads can cause failure.</li> <li>Large 11x4-5 flat-free front caster wheels and large 18x8.5-10 (Q810E) or 18x10.5-10 (Q820E) 4-ply rear drive wheels provide a smoother ride.</li> <ul> <li>Better slope performance</li> <li>More operator comfort over uneven ground</li> <li>Better traction</li> </ul> </ul></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Hydrostatic drive system is reliable and easy to use</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/hydrostatic_pump_265x205.jpg" alt="Hydrostatic pumps"><span class="caption">Hydrostatic pumps</span> </div> </div> <p>E Series QuikTrak Mowers use a heavy-duty hydrostatic pump and wheel-motor drive system that gives reliable and consistent performance and long life:</p> <ul> <li>Heavy-duty components stand up to the rigors of commercial use.</li> <li>Individual pump and wheel motor design allows placement of these heavy components low in the vehicle for a low center of gravity&nbsp;and excellent hillside stability.</li> </ul> <p>Two Hydro-Gear™,&nbsp;0.61-cu in.&nbsp;(10-cc) axial piston, variable-displacement pumps provide hydraulic power to the wheel motors:</p> <ul> <li>Pumps are linked to&nbsp;the hand-control levers to allow the operator to make speed and direction changes.</li> <li>Rugged construction is ideal for high-performance commercial use.</li> <li>Piston design gives efficient and consistent performance.&nbsp;</li> <li>A replaceable hydraulic filter helps ensure long life of the pumps and wheel motors.</li> </ul> <p>Two individual,&nbsp;12-cu in.&nbsp;(196.6-cc), piston wheel motors&nbsp;power the QuikTrak drive wheels.&nbsp;Their heavy-duty construction and&nbsp;super-efficient axial-piston design provides superior performance and seamless power to the wheels:</p> <ul> <li>Integrated high-pressure shaft seal&nbsp;gives greater reliability.</li> <li>Large bearings are designed with the capacity&nbsp;to carry&nbsp;heavier loads and give long life.</li> </ul> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4a044806_636m_14_stu_rt_hyd_oil_filter.jpg" alt="Transmission oil filter"><span class="caption">Transmission oil filter</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4a044557_14_636m_stu_trans_reservoir.jpg" alt="Transmission fluid oil reservoir"><span class="caption">Transmission fluid oil reservoir</span> </div> </div> <p>A spin-on-type replaceable hydraulic oil filter is conveniently located:</p> <ul> <li>Extends life of transmission components by keeping oil clean</li> <li>Easy to reach for easy and fast service</li> </ul> <p>A hydraulic fluid oil reservoir is located behind the leaning pad:</p> <ul> <li>Located in a&nbsp;cleaner environment</li> <li>Easy to access for inspection and service</li> <li>Sight glass built into the tank reduces risk of contamination when checking fluid level</li> </ul> <p>Transmission bypass valves are provided on each hydrostatic pump to permit moving the QuikTrak without the engine running.<br><br>Hydro-Gear&nbsp;is a trademark of Hydro-Gear Limited Partnership AF Holding Company.</p></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Safety features are built-in to protect the operator and bystanders</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082567_rrd_q810e_overhead_controls_350x350.jpg" alt="Operator Controls"><span class="caption">Operator Controls</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/r4k082544_rrd_q810e_deflector_350x350.jpg" alt="Mower discharge deflector"><span class="caption">Mower discharge deflector</span> </div> </div> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/600_quik_traks/r4d108006_18_636m_curb_wheels_275s.jpg" alt="Curb wheels"><span class="caption">Curb wheels</span> </div> </div> <p>Key safety features of QuikTrak™ Mowers include:</p> <ul> <li>Start circuit requirements <ul> <li>Park brake engaged</li> <li>Power take-off (PTO) disengaged</li> <li>Control levers in neutral</li> <li>Ignition key used to start the engine</li> </ul></li> <li>A high-quality, polyethylene, mower-discharge deflector <ul> <li>Deflects if it strikes a solid obstruction, causing less damage</li> <li>Returns to its original shape and function</li> </ul></li> <li>Operator station designed to allow fast exit</li> <li>Two large curb wheels</li> <li>Easy to remove and replace shields</li> <li>Stationary handles on either side of the traction controls for operator security</li> <li>Control levers return to neutral when released</li> </ul> <h5>Mower deck safety certification </h5> <div class="seccion-images"></div> <p>QuikTrak mower decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2017 safety certification specifications for commercial turf care equipment.</p> <h5>Optional LED strobe light attachment</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/q810e_strobe_rear_350x350.jpg" alt="Rear strobe light"><span class="caption">Rear strobe light</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/q800_quiktrak/q810e_strobe_front_350x350.jpg" alt="Front strobe light"><span class="caption">Front strobe light</span> </div> </div> <p>The optional LED strobe light attachment increases visibility of the QuikTrak mowers to motorists. The kit includes two lights providing visibility in all directions.</p></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Manage your commercial mowing fleet using John Deere Operations Center&amp;trade;</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/1600turbo/r4j007319_1570_1585_1600_450x350.jpg" alt="TerrainCut™ Front and Wide-Area Mowers"><span class="caption">TerrainCut™ Front and Wide-Area Mowers</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/1600turbo/r4k054130_z955m_q865r_w48r.jpg" alt="ZTrak, QuikTrak, and commercial walk-behind Mowers"><span class="caption">ZTrak, QuikTrak, and commercial walk-behind Mowers</span> </div> </div> <h5>Overview</h5> <div class="seccion-images"></div> <p>A JDLink™ M Modem connects a commercial mower to the John Deere Operations Center, which enables you to manage your fleet more efficiently, increase productivity, and reduce labor costs. With a modem and Operations Center, you are always connected to the work in progress and can make timely adjustments to keep your fleet mowing.</p> <h5>JDLink M Modem</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/1600turbo/r4j021812_jdlink_m_modem_4g_350s.jpg" alt="JDLink M Modem"><span class="caption">JDLink M Modem</span> </div> </div> <p>A JDLink M Modem is standard equipment on model year 2024 and newer TerrainCut Front and Wide-Area Mowers.<br><br>A modem can be field installed on:</p> <ul> <li>Model year 2024 and newer Z700 ZTrak™ Mowers</li> <li>Model year 2024 and newer gasoline-powered Z900 ZTrak Mowers</li> <li>Model year 2024 and newer Z994R ZTrak Mowers</li> <li>Model year 2021 and newer Z997R ZTrak Mowers</li> <li>Model year 2024 and newer Q800 QuikTrak™ Mowers</li> <li>Model year 2025 and newer R Series commercial walk-behind mowers</li> <li>Model year 2022-2023 TerrainCut Front Mowers</li> <li>Model year 2023 TerrainCut Wide-Area Mowers</li> </ul> <p>See compatibility section for serial number breaks and requirements.</p> <h5>John Deere Operations Center</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/ztraks_com/running_connected.jpg" alt="John Deere Operations Center is available on PC, Apple iOS, and Android mobile apps"><span class="caption">John Deere Operations Center is available on PC, Apple iOS, and Android mobile apps</span> </div> </div> <p>The John Deere Operations Center tracks your fleet and provides tools to analyze mower data. The connected features vary by mower model.</p> <table class="table table-striped table-bordered"> <tbody> <tr> <td style="width: 197px; vertical-align: middle;" width="197"><p>Models</p></td> <td style="text-align: center; vertical-align: top;" width="35"><p>Location and status</p></td> <td style="text-align: center; vertical-align: top;" width="28"><p>GPS</p><p>speed</p></td> <td style="text-align: center; vertical-align: top;" width="46"><p>Geofencing and curfews</p></td> <td style="text-align: center; vertical-align: top;" width="30"><p>Engine hours</p></td> <td style="text-align: center; vertical-align: top;" width="52"><p>Maintenance planner</p></td> <td style="text-align: center; vertical-align: top;" width="36"><p>Machine Analyzer Tool</p></td> <td style="text-align: center; vertical-align: top;" width="27"><p>Fuel level</p></td> <td style="text-align: center; vertical-align: top;" width="51"><p>Fuel consumption</p></td> <td style="text-align: center; vertical-align: top;" width="43"><p>Diagnostic trouble codes</p></td> <td style="text-align: center; vertical-align: top;" width="82"><p>Service Advisor Remote</p></td> </tr> <tr> <td width="197"><p>Z700 ZTrak Mowers</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Key</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>---</p></td> </tr> <tr> <td width="197"><p>Z900 ZTrak Mowers with carbureted engines</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Key</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>---</p></td> </tr> <tr> <td width="197"><p>Z900 ZTrak Mowers with EFI engines</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Sync</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>X</p></td> </tr> <tr> <td width="197"><p>Z994R ZTrak Mowers</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Key</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>---</p></td> </tr> <tr> <td>Z997R ZTrak Mowers</td> <td style="text-align: center; vertical-align: middle;"><p>X</p></td> <td style="text-align: center; vertical-align: middle;"><p>X</p></td> <td style="text-align: center; vertical-align: middle;"><p>X</p></td> <td style="text-align: center; vertical-align: middle;"><p>Sync</p></td> <td style="text-align: center; vertical-align: middle;"><p>X</p></td> <td style="text-align: center; vertical-align: middle;"><p>X</p></td> <td style="text-align: center; vertical-align: middle;"><p>---</p></td> <td style="text-align: center; vertical-align: middle;"><p>X</p></td> <td style="text-align: center; vertical-align: middle;"><p>X</p></td> <td style="text-align: center; vertical-align: middle;"><p>X</p></td> </tr> <tr> <td width="197"><p>E Series QuikTrak Mowers</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Key</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>---</p></td> </tr> <tr> <td width="197"><p>Q820M, Q850M, and Q850R QuikTrak Mowers</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Sync</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>---</p></td> </tr> <tr> <td width="197"><p>Q865R EFI QuikTrak Mowers</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Sync</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>X</p></td> </tr> <tr> <td width="197"><p>R Series commercial walk-behind mowers</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Key</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>---</p></td> </tr> <tr> <td width="197"><p>1550 TerrainCut Front Mowers</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Key</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>---</p></td> </tr> <tr> <td width="197"><p>1570, 1575, 1580, and 1585 TerrainCut Front Mowers</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Key</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>X</p></td> </tr> <tr> <td width="197"><p>1600 TerrainCut Wide-Area Mowers</p></td> <td style="text-align: center; vertical-align: middle;" width="35"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="28"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="46"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="30"><p>Key</p></td> <td style="text-align: center; vertical-align: middle;" width="52"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="36"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="27"><p>---</p></td> <td style="text-align: center; vertical-align: middle;" width="51"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="43"><p>X</p></td> <td style="text-align: center; vertical-align: middle;" width="82"><p>X</p></td> </tr> </tbody> </table> <h5>Location and status</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/1600turbo/ops_center_map_720x450.jpg" alt="Operations Center map displaying past locations of a mower"><span class="caption">Operations Center map displaying past locations of a mower</span> </div> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/1600turbo/mobile_ops_center_map_210x450.jpg" alt="Mobile view of Operations Center map showing GPS speed "><span class="caption">Mobile view of Operations Center map showing GPS speed </span> </div> </div> <p>The JDLink M Modem regularly transmits the location and operational status of each mower in the fleet so you can monitor mowing progress in Operations Center.</p> <ul> <li>Location history-Display of map with current and past locations of each mower.</li> <li>GPS Speed-Maps each mower’s current speed, based on GPS location data, so you can target operator training.</li> <li>Hours of operation-Reports the time of day the vehicle has been operated.</li> <li>Geofencing-Alerts when a mower enters or exits a prescribed area, for example if the mower has been stolen or an operator entered an area that should not be mowed.</li> <li>Curfews-Alerts if the mower is operating outside prescribed times, for example residential areas with early-morning noise restrictions.</li> </ul> <h5>Engine hours</h5> <div class="seccion-images"></div> <p>The modem regularly transmits the mower’s engine hours to inform maintenance planning and balance use.</p> <ul> <li>Sync-The mower reports actual engine hours to the Operations Center.</li> <li>Key-Engine hours are estimated by monitoring the key switch. Engine hours can be corrected in Operations Center.</li> </ul> <h5>Maintenance planner</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/1600turbo/ops_center_maintenance_planner_835x450.jpg" alt="Operations Center Maintenance Planner"><span class="caption">Operations Center Maintenance Planner</span> </div> </div> <p>Factory or custom maintenance plans can be established in Operations Center. Maintenance alerts are sent when engine hours reach maintenance intervals.</p> <h5>Diagnostic trouble codes (DTCs)</h5> <div class="seccion-images"></div> <p>On select products, the modem transmits the trouble codes generated by the mower’s control units to the Operations Center. Addressing DTCs can reduce downtime and repair costs. For example, a low-engine oil pressure DTC can indicate an engine is low on oil. Addressing the issue can prevent costly downtime and repairs.<br><br>To help address issues quickly, when a DTC is generated, the Operations Center can display a push notification on the mobile app and send an email. Operations Center can also be configured to limit notifications to stop-level severity DTCs.</p> <h5>Machine Analyzer Tool</h5> <div class="seccion-images"> <div> <img src="https://salesmanual.deere.com/customer/sales/salesmanual/images/NA/commercial_mowers/features_attachment/1600turbo/machine_analyzer_tool.jpg" alt="Operations Center Machine Analyzer Tool"><span class="caption">Operations Center Machine Analyzer Tool</span> </div> </div> <p>On select products, the modem reports the time the mower spent transporting, idling, and working. The Operations Center’s Machine Analyzer tool reports usage data which allows you to analyze operator behavior, identify causes of low productivity, and initiate corrective actions.</p> <h5>Fuel level</h5> <div class="seccion-images"></div> <p>On select products, the modem reports the fuel level. On these products, an analysis of fuel consumption is available in the Operations Center Machine Analyzer Tool. Measuring fuel consumption enables you to address causes of excessive fuel use.</p> <h5>Service Advisor Remote</h5> <div class="seccion-images"></div> <p>On select products, John Deere dealers can perform remote diagnostics, software programming, and adjustments without the cost of a service call.</p> <h5>Compatibility</h5> <div class="seccion-images"></div> <p>A JDLink M Modem is standard equipment on model year 2024 and newer (SN 110,001-) TerrainCut Front Mowers and model year 2024 and newer (SN 690,001-) TerrainCut Wide-Area Mowers.</p> <p>&nbsp;</p> <p>A JDLink M Modem can be field installed on the commercial mowing products listed below. Field installation attachments simplify modem installation, and include brackets, mounting hardware, harness, and instructions. Field installation requires a JDLink M Modem to be ordered separately. The field installation attachments include a wiring harness therefore the modem should be ordered with the less harness option code.</p> <p>&nbsp;</p> <table class="table table-striped table-bordered"> <tbody> <tr> <td style="width: 297.875px;"><p><strong>Model</strong></p></td> <td style="text-align: center; width: 238.109px;"><p><strong>Compatible model years</strong></p></td> <td style="text-align: center; width: 174.25px;"><p><strong>Installation attachment</strong></p></td> </tr> <tr> <td style="width: 297.875px;"><p>Z700 ZTrak Mowers</p></td> <td style="text-align: center; width: 238.109px;"><p>2024 and newer (SN 080,001-)</p></td> <td style="text-align: center; width: 174.25px;"><p>BUC11759</p></td> </tr> <tr> <td style="width: 297.875px;"><p>Gasoline-powered Z900 ZTrak Mowers</p></td> <td style="text-align: center; width: 238.109px;"><p>2024 and newer (SN 130,001-)</p></td> <td style="text-align: center; width: 174.25px;"><p>BUC11759</p></td> </tr> <tr> <td style="width: 297.875px;"><p>Z994R ZTrak Mowers</p></td> <td style="text-align: center; width: 238.109px;"><p>2024 and newer (SN 070,001-)</p></td> <td style="text-align: center; width: 174.25px;"><p>BUC11759</p></td> </tr> <tr> <td style="width: 297.875px;"><p>Z997R ZTrak Mowers</p></td> <td style="text-align: center; width: 238.109px;"><p>2021 and newer (SN 070,001-)</p></td> <td style="text-align: center; width: 174.25px;"><p>BUC11908</p></td> </tr> <tr> <td style="width: 297.875px;"><p>QuikTrak Mowers</p></td> <td style="text-align: center; width: 238.109px;"><p>2024 and newer (SN 010,001-)</p></td> <td style="text-align: center; width: 174.25px;"><p>BUC11744</p></td> </tr> <tr> <td style="width: 297.875px;"><p>R Series commercial walk-behind mowers</p></td> <td style="text-align: center; width: 238.109px;"><p>2025 and newer (SN 070,001-)</p></td> <td style="text-align: center; width: 174.25px;"><p>BUC11918</p></td> </tr> <tr> <td style="width: 297.875px;"><p>TerrainCut Front Mowers</p></td> <td style="text-align: center; width: 238.109px;"><p>2022-2023 (SN 080,001-110,000)</p></td> <td style="text-align: center; width: 174.25px;"><p>BUC11797</p></td> </tr> <tr> <td style="width: 297.875px;"><p>1600 TerrainCut Wide-Area Mowers</p></td> <td style="text-align: center; width: 238.109px;"><p>2023 (SN 680,001-690,000)</p></td> <td style="text-align: center; width: 174.25px;"><p>BUC11797</p></td> </tr> </tbody> </table></div></div></div></div></div>
