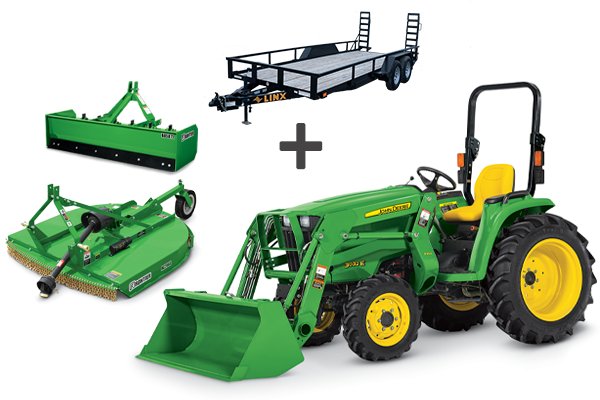

New 3032E Tractor Package

Specifications

Compare >>> Select up to 2 models to compare specifications

John Deere3032E Tractor Package

Add Model --Please Select-- 2032R (Model year 2017) 2038R (Model year 2017) 3025D (Model year 2019) 3025E (Model year 2017) 3025E (Model year 2019) 3033R (Model year 2017) 3033R (Model year 2019) 3035D (Model year 2019) 3038E (Model year 2019) 3039R (Model year 2019) 3043D (Model Year 2019) 3046R (Model year 2019) ?Kubota L3301 HST 4WD, L3301 GST 2WD & 4WD Kubota L3901 HST 4WD, L3301 GST 2WD & 4WD New Holland Workmaster 35 New Holland Workmaster 40

Add Model --Please Select-- 2032R (Model year 2017) 2038R (Model year 2017) 3025D (Model year 2019) 3025E (Model year 2017) 3025E (Model year 2019) 3033R (Model year 2017) 3033R (Model year 2019) 3035D (Model year 2019) 3038E (Model year 2019) 3039R (Model year 2019) 3043D (Model Year 2019) 3046R (Model year 2019) ?Kubota L3301 HST 4WD, L3301 GST 2WD & 4WD Kubota L3901 HST 4WD, L3301 GST 2WD & 4WD New Holland Workmaster 35 New Holland Workmaster 40

Engine power (gross)	22.9 kW 31.2 hp
Power take-off (PTO) power	18.6 kW 25 hp
Steering hydraulics	15 L/min 4 gpm
Implement hydraulics	20.2 L/min 5.3 gpm
Hitch type	Category 1
Lift capacity, 24-in. behind link arms	615.1 kg 1356 lb
Standard transmission; forward/reverse	Hydrostatic transmission (HST)
Cruise control	Optional
Approximate shipping weight (open-station; cab)	1007.9 kg 2222 lb
Wheelbase	159.5 cm 62.8 in.

Family	EYDXL1.64NDA FYDXL1.64NDA GYDXL1.64NDA
Manufacturer	Yanmar
Engine model	3TNV88C-NJT
Engine power (gross)	22.9 kW 31.2 hp
Power take-off (PTO) power	18.6 kW 25 hp
Rated engine speed	2500 rpm
Type	Diesel
Injection pump type	High pressure common rail direct injection
Aspiration	Natural
Emissions compliance	Final Tier 4
Cylinders/displacement	3 / 1.64 L 3 / 100.2 cu in.
Number of cylinders	Three
Cylinder liners	Cast-in-block
Bore and stroke	88 x 90 mm 3.46 x 3.54 in.
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Water pump
Air cleaner	Dual element
Engine torque at rated speed	87 Nm 64.2 lb-ft
Fuel tank capacity	28.5 L 7.5 U.S. gal.

Battery size	500 CCA
Alternator (12-V)	55 amp
Starter size	1.4 kW 1.9 hp

Type	High pressure common rail direct injection
Fuel consumption

Standard transmission; forward/reverse	Hydrostatic transmission (HST)
Optional transmission; forward/reverse
Left-hand reverser	No
Transmission gear ranges
Final drive	Bull Gear
Brakes	Wet disc
Steering	Power steering
Clutch, wet/dry
Clutch disk diameter wet clutch
Axle capacity	Front 798 kg 1760 lb Rear 1197 kg 2640 lb
Creeper	No
Cruise control	Optional
Differential lock	Yes
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 15 L/min 4 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm
Pump type	Dual gear
Maximum operating pressure	172.4 bar 2500 psi
Draft control sensing	Position control
Remote control valves available	Up to two (optional)

Type	Category 1
Lift capacity, 24-in. behind link arms	615.1 kg 1356 lb

Standard	540 rpm at 2500 rpm
Optional
Control	Independent
Clutch	Wet disk
Brake (for mid and rear PTO)	Wet disk
Engagement method

Crankcase with filter	4.5 L 4.8 qt
Transmission and hydraulic system

Type	Bull Gear
Differential lock

Rollover protective structure	Type Foldable ASABE S478
Platform - flat/straddle	Semi-flat
Gear shift location - console/floor	Left-hand side

Compliance
Visibility
Air conditioning, temperature differential
Doors
Noise rating
Seat equipment

Wheelbase	159.5 cm 62.8 in.
Front axle clearance	36.3 cm 14.3 in.
Turning radius with brakes
Turning radius without brakes	2.9 m 9.4 ft
Limited slip differential
Approximate shipping weight (open-station; cab)	1007.9 kg 2222 lb

Front	Farm - 7-14 Turf - 27x8.5-15 R4 - 25x8.5-14 R4 - 27x8.5-15
Rear	Farm - 11.2-24 Turf - 41x14-20 R4 - 15-19.5 R4 - 43x16-20
Front tread range
Rear tread spacing

Toolbox
Tilt steering wheel
12-V Outlet
